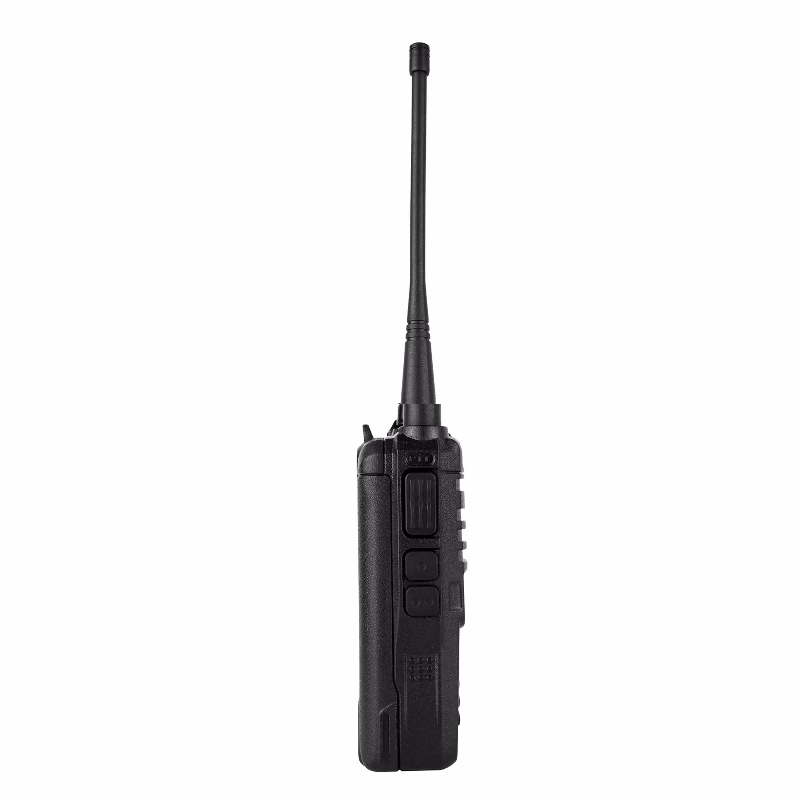

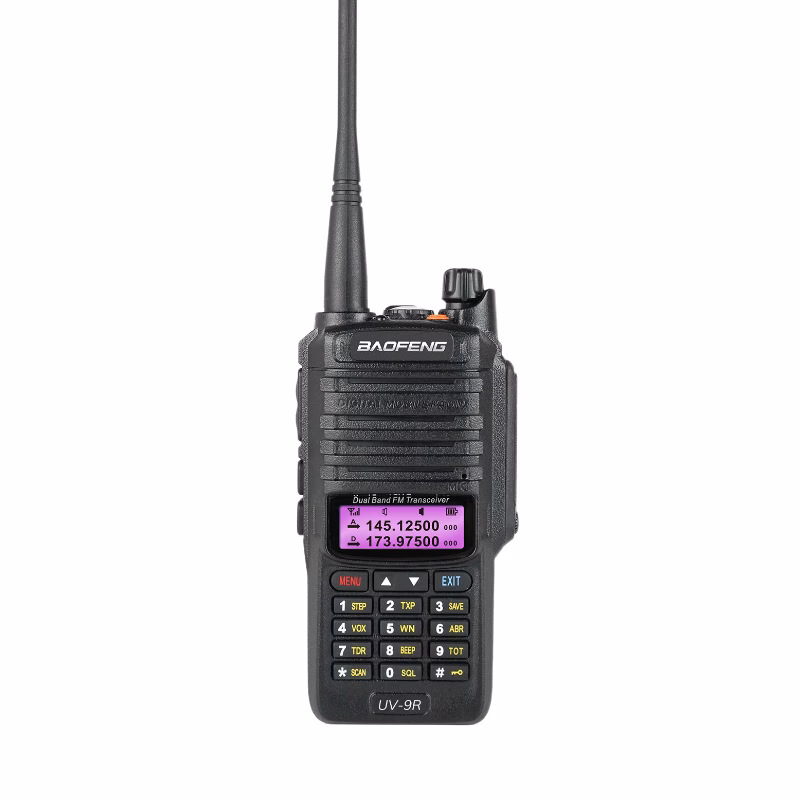

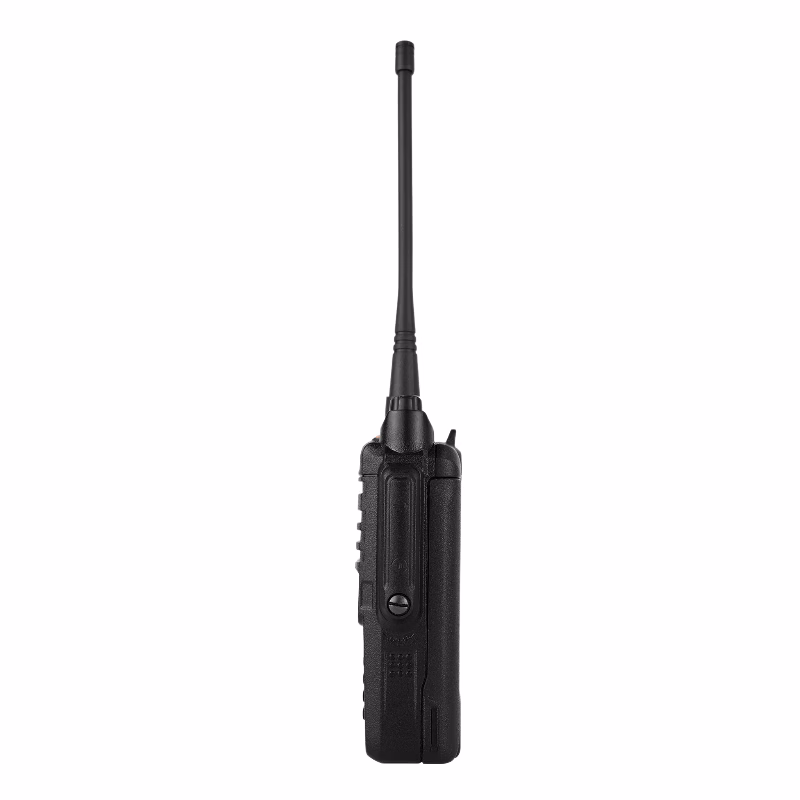

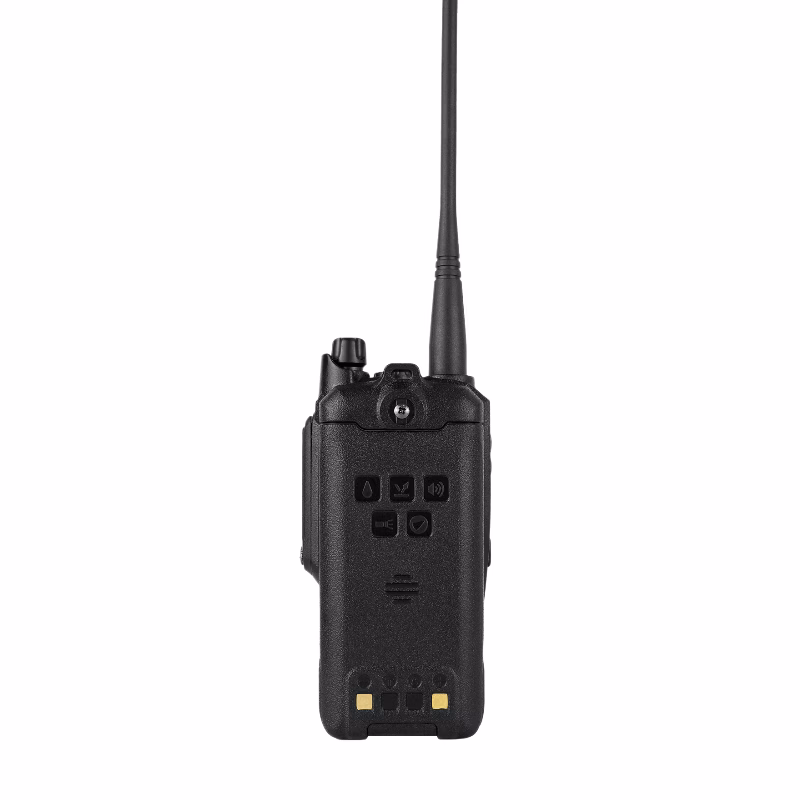

Baofeng UV-9R Dual-Band Analog Handheld Radio IP57

The Baofeng UV-9R Dual-Band Analog Handheld Radio is the practical pick for sites where a radio spends its working life outdoors. Its standout benefit is the pairing of an IP57-rated body with true dual-band operation: the unit transmits on VHF 136-174 MHz and UHF 400-520 MHz with selectable 5 W, 3 W or 1 W output, and its sealed enclosure tolerates dust and temporary immersion in water that would sideline an unrated handheld. Around that core it adds 128 memory channels, cross-band receive and transmit, an illuminated LCD with a programmable keypad, and a 7.4 V 1800 mAh Li-ion battery. For a facilities or security manager equipping patrols, construction crews or event staff, it covers the essentials without demanding a complex deployment.

How the Baofeng UV-9R Performs in Daily Use

In daily service the UV-9R behaves like a conventional analog FM radio, which is exactly what most mixed fleets need. It operates in simplex or semi-duplex mode, and each channel can be set to wide 25 kHz or narrow 12.5 kHz bandwidth with steps of 2.5, 5, 6.25, 10, 12.5, 20 or 25 kHz, so it can be matched to an existing channel plan rather than forcing a new one. Receiver sensitivity of 0.2 µV at 12 dB SINAD and a 1 W audio output stage keep weaker or distant calls intelligible across a noisy yard, while frequency stability of 2.5 ppm and a 50 ohm antenna connection hold performance steady across the -20 to +60 °C operating range. CTCSS and DCS tone squelch keep your group from hearing unrelated traffic on a shared frequency, and VOX allows hands-free transmission with the headset included in the box. For urgent situations the radio carries a DTMF emergency alarm and an SOS sound-and-light alarm, supported by ANI identification, frequency reverse, a battery saver and a built-in LED flashlight.

Where Saudi Teams Deploy the UV-9R

The IP57 rating is the reason this model earns its place on exposed Saudi sites. Dust-laden environments such as construction zones, logistics yards, farms and open event grounds are where unsealed radios fail first; the UV-9R’s enclosure is built for those conditions, including brief immersion during heavy rain or wash-down. Outdoor security patrols benefit from the SOS alarm and DTMF emergency signalling, while the LED flashlight and illuminated display help guards on night rounds. The rated operating window of -20 to +60 °C covers summer surface heat, and at roughly 279 g with dimensions of 65 x 41.5 x 133.8 mm the unit rides comfortably on the supplied belt clip or lanyard through a full shift. FM broadcast reception from 65 to 108 MHz (receive only) gives staff a broadcast radio for breaks without touching the working channels.

Where the UV-9R Sits When You Choose

The UV-9R belongs on the shortlist when environmental protection leads the buying requirements. Anyone weighing it against unsealed handhelds should treat the protection rating as the deciding factor, because electrically the radio covers everyday analog duties while keeping the full 128-channel capacity, three-level selectable output and cross-band receive/transmit — listening on one band while transmitting on the other. That mix suits operations running one channel plan across varied terrain: security on UHF inside a facility, for example, with field coordination on VHF across open ground. Being an analog unit, it also slots into a fleet of analog radios already working at the site without changing how the team operates.

Programming and Deployment Notes

Deploying a small fleet of the UV-9R is straightforward. Channels are loaded by PC programming over a cable or entered directly from the programmable keypad, and 128 memory slots leave room to grow beyond the initial plan. The 1800 mAh pack recharges on the desktop charger supplied in the box, and the stated duty-cycle guidance of 3 minutes receiving, 3 minutes transmitting and 54 minutes on standby reflects a typical working rhythm; current draw of 380 mA on receive and up to 1.4 A on transmit explains why the 3 W and 1 W settings are worth using for short-range traffic to stretch battery life. Emission designators of 16K0F3E on wide and 11K0F3E on narrow channels should be matched to the channel plan in use at the site. Each box contains the radio, Li-ion battery, belt clip, lanyard, headset, desktop charger and user manual, so a unit can be issued to staff the day it arrives.

Package Contents

• UV-9R radio
• Li-ion battery
• belt clip
• lanyard
• headset
• desktop charger
• user manual
