GME GX700 Fixed-Mount VHF Marine Radio IPX7

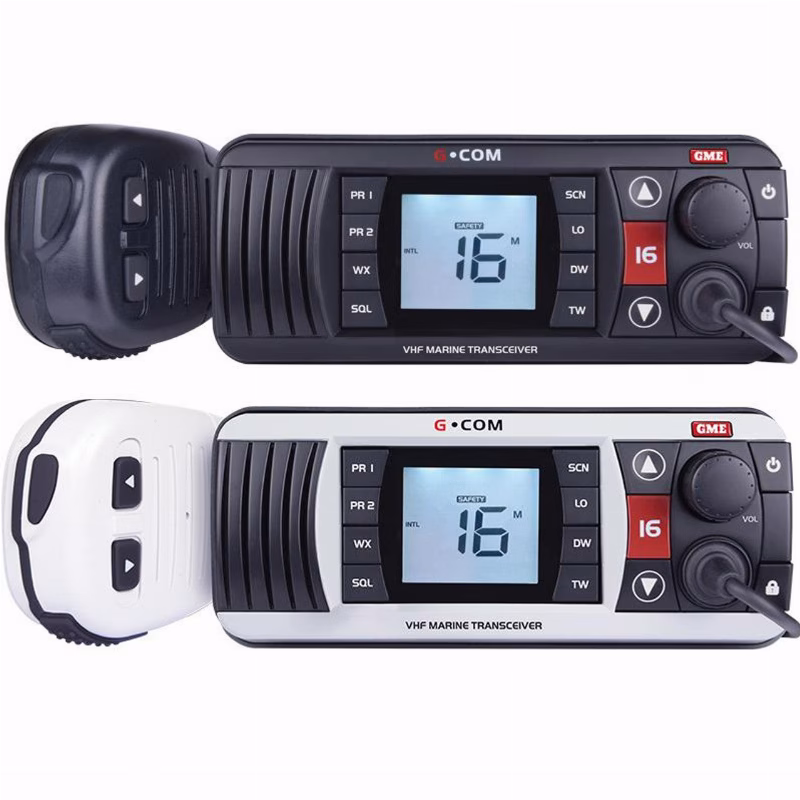

The GME GX700 Fixed-Mount VHF Marine Radio centres the buying decision on environmental protection and a permanent communications position. Its enclosure carries an IPX7 rating, excluding external cabling, and the radio operates across 155-165 MHz using analog FM. High-power transmission reaches a maximum of 25 W, while the low setting provides a maximum of 1 W for situations that do not require full output. This layout suits vessels and marine operations that want the radio installed at a known station, connected to the vessel supply, and accessible to the crew responsible for the watch. An LCD and keys with adjustable backlighting let the operator adapt control visibility to the light around the mounting position without adding a separate display.

How the GME GX700 Fixed-Mount VHF Marine Radio Operates

The GX700 uses analog FM with 25 kHz channel spacing. It supports international, USA, and Canadian channel sets, as well as USA and Canada weather channels. That selection is useful for an organisation operating a vessel or marine asset across areas that follow different channel plans. The operating team can choose the channel set appropriate to its procedures and location instead of treating one regional plan as universal. Dual Watch and Triple Watch help the operator follow the working channel while monitoring priority traffic, with two programmable priority channels available for the watch arrangement. A communications manager can therefore define the working and priority channels during setup and give each watch team a repeatable monitoring pattern.

Scanning runs at 100 ms per channel, equivalent to 10 channels per second. This rate supports an operating routine that monitors several configured channels, while the programmable priority channels keep critical traffic central to that routine. A time-out timer limits continuous PTT operation to 90 seconds, reducing the risk that an unintentionally held transmit control keeps the channel occupied for an extended period. Receiver sensitivity is -121 dBm at 12 dB SINAD unweighted. Radio engineers can use this receiver figure when assessing the proposed installation together with antenna choice, antenna position, feeder routing, and the communications path expected for the vessel.

Audio and Display Choices at the Operating Station

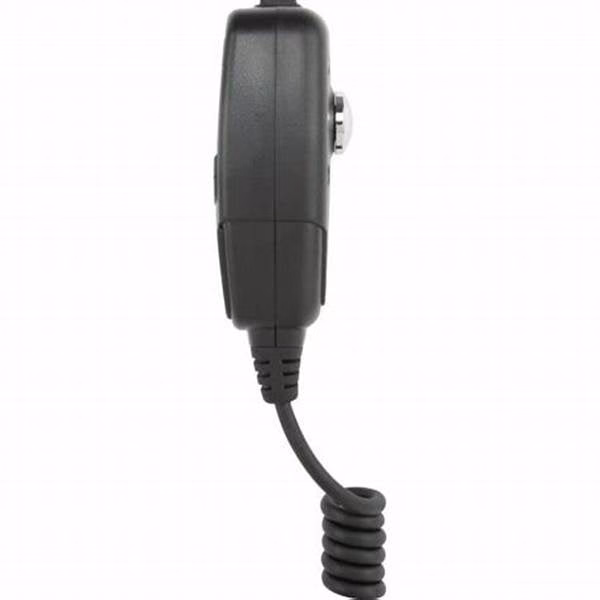

The internal speaker delivers an average output of 2 W. If the mounting position requires a separate listening point or higher audio output, the external connection supports an average of 4 W into a 4 Ohm speaker. This gives the site designer a choice between listening directly from the radio and planning an external speaker for the operating environment. Connections consist of a 6-pin microphone socket, a 2-pin DC supply socket, and a 3.5 mm external speaker socket. Those interfaces should be included in the installation drawing so the team can route the microphone, power supply, and external audio cabling before the radio is secured in the panel.

Adjustable backlighting for both the LCD and the keys helps the operator balance legibility against ambient light. Brightness can be increased when daylight makes the controls harder to read, or reduced in a dark operating position where excessive panel glow would be distracting. The adjustment remains on the installed radio, so it does not require moving the unit or introducing another screen. Combined with selectable transmit power, watch functions, and defined priority channels, the interface supports a fixed station where the person on duty can identify the active channel and reach the controls consistently.

Saudi Marine and Coastal Operating Scenarios

The GX700 fits vessel operations, marina services, and coastal teams that depend on a fixed radio station inside a marine asset. An operations manager can assign the radio to a permanent control position, select the relevant regional channel set, and programme the priority channels before the vessel begins work. The radio also suits sites that need high transmit output up to 25 W but want the option to reduce it to 1 W for a particular communications path. Range remains conditional on antenna height, power, and terrain. Ship-to-ship communication can extend from at least 8 to approximately 27 nautical miles, while ship-to-shore communication of 25-50 nautical miles may be possible under the stated conditions.

These range figures make antenna planning a core deployment task rather than an afterthought. A project manager can use them as conditional planning boundaries while examining antenna height, the vessel profile, the shore station, and terrain on the intended path. They should not be treated as a fixed distance in every location. The selectable output settings and regional channel sets then allow the operating procedure to match the actual assignment. At a port or coastal facility supervising several marine assets, the team can document the correct channel set, working channel, priority channels, and transmit setting for each installed GX700 so different watches follow the same communications plan.

Positioning the GX700 Against the GX875

The GX700 is the family choice to examine when the requirement calls for a fixed VHF marine station, a maximum transmit output of 25 W, and operation from a nominal 12 V supply. The GX875 addresses a different deployment pattern within the same family. When a radio must be panel-mounted, connected to the marine asset’s DC system, and paired with an external speaker if the site requires one, the GX700 aligns directly with that design. Environmental protection also needs deliberate comparison: the GX700 is rated IPX7 with external cabling excluded, while the GX875 uses a different protection class. Buyers should therefore map each model to its intended operating position instead of treating the two as interchangeable units.

This fixed-station role is particularly useful when communications belong to a control point or watch rather than to a radio carried by one moving person. The microphone and display remain at a known location, priority channels can be programmed in advance, and the internal or external audio route can be selected around the station design. The radio’s physical dimensions and flush-mounting depth also let the installer reserve panel space early. A fleet manager can standardise GX700 units at fixed communications points and evaluate the GX875 for a separate working pattern, recognising that mounting, power supply, and protection class affect daily use and maintenance.

Mounting, Power, and Commissioning Requirements

The GX700 measures 164 mm wide, 65 mm high, and 77 mm deep, with a weight of 545 g. Flush mounting requires a minimum panel depth of 46 mm. A compass-safe distance of 300 mm must also be maintained. Before cutting or drilling the panel, installers should confirm the face opening, rear clearance, microphone position, cable bends, and compass separation. The exclusion of external cabling from the IPX7 rating should remain visible in the installation plan, because protection assigned to the radio body does not automatically assign the same rating to every external cable or connection.

Nominal supply voltage is 12 V, with a maximum accepted range of 10.5-15.6 V and negative earth. The DC source and polarity should be checked against those limits before connection. Operating temperature extends from -10 °C to +55 °C, and frequency stability is ±1.5 kHz over environmental extremes. The radio also states compliance with AS/NZS4415.2.2003; procurement teams can retain that reference in the product file while assessing the local requirements of their own project. Commissioning should cover secure mounting, supply voltage, polarity, compass distance, and cable routing, followed by selection of the regional channel set, backlight level, priority channels, and transmit power appropriate to the operating procedure.

Package Contents

• GME GX700 VHF marine radio
• Cabin cover
• Mounting hardware
• MB205 microphone bracket
• 12V DC power lead
