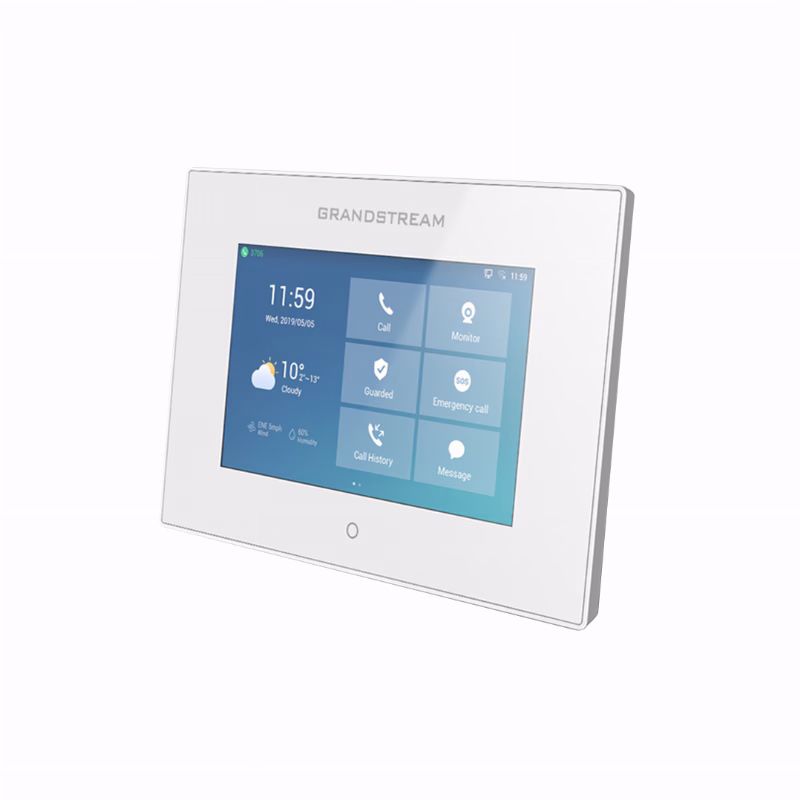

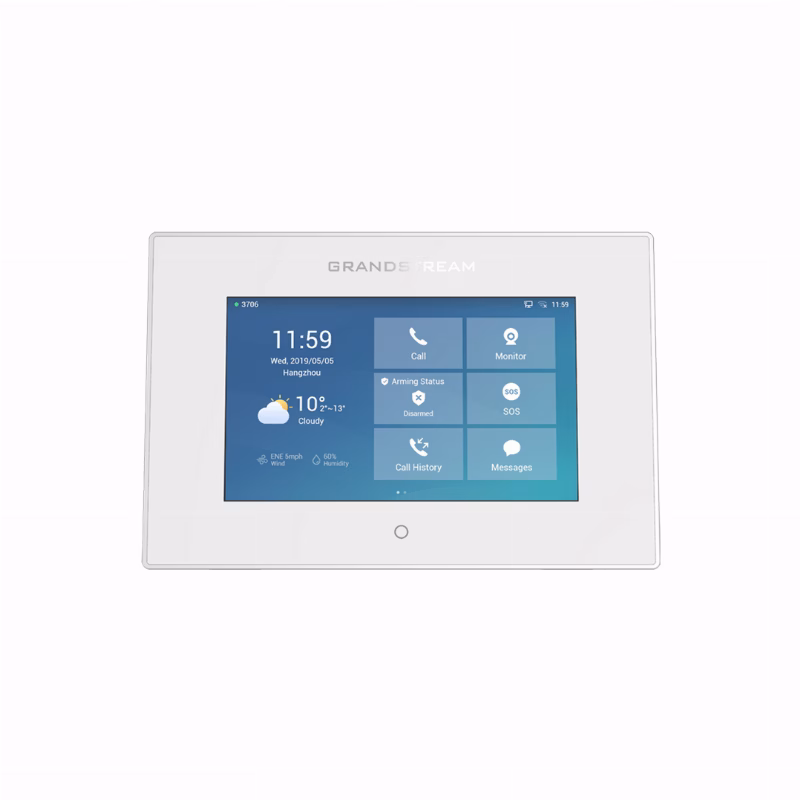

Grandstream GSC3570 7-Inch Video Intercom Station

The Grandstream GSC3570 is a 7-inch IP video intercom control station, built for sites that need a monitoring and control point rather than just an audio paging speaker. Its 7-inch capacitive touch TFT LCD runs at 1024×600 resolution, and it accepts video input up to 720p at 30fps in H.264 Baseline, Main, or High profile, letting it display a live camera or door-station feed at the control point itself. Two 10/100Mbps Ethernet ports with PoE power and 802.11ac dual-band Wi-Fi cover both wired and wireless deployment, while four SIP accounts let it register to multiple lines or extensions at once. Within the GSC35 family, the Grandstream GSC3570 is the video-capable control station.

What the Grandstream GSC3570 Does in Practice

The touchscreen serves as a local control and answering point: a guard or receptionist can view an incoming video call from a door station, release a gate lock, or acknowledge an alarm without leaving the desk. Four alarm inputs and one alarm output let it tie into door contacts, panic buttons, or a relay-controlled lock, turning the unit into a small control hub rather than a passive display. Built-in stereo speakers with HD audio and advanced echo cancellation handle both intercom conversation and any paging audio routed to it. A microSD storage slot allows local recording or snapshot storage without depending on a separate NVR for basic event capture. Audio codecs include G.711 mu/a-law, G.722, G.726-32, iLBC, Opus, and G.729A/B, keeping it compatible with the same SIP infrastructure used across the rest of the family. Because the touch interface handles both the video call and the door-release action on one screen, a single operator can manage several entry points from one desk without switching between separate intercom and access-control panels.

Where It Fits Across Saudi Facilities

A touchscreen video control station suits monitored access points: a compound or villa gatehouse where a guard needs to see and speak with a visitor before releasing the lock, a warehouse or office reception desk handling both video intercom and general SIP calls, and a small control room where a single station needs to combine door monitoring with an alarm-input trigger for a side entrance or storeroom. Because it runs on standard PoE over 10/100 Ethernet, it fits the same cabling used by IP cameras and access-control readers at the same site, and the 802.11ac Wi-Fi option covers control points where a network drop is not practical. A reception desk running the GSC3570 alongside a regular SIP handset gives staff both a visual check on visitors at the door and normal internal or outside calling from the same desk position.

GSC3570 vs. the Rest of the GSC35 Family

Where the GSC3510 and GSC3516 are audio-only paging speakers built to project announcements, the GSC3570 is a video-capable control station with a touchscreen, video input, and alarm I/O — a different job within the same SIP ecosystem. It is the natural pairing point for those paging speakers: a guard at the GSC3570 can trigger a page to a speaker elsewhere on the same SIP network while watching the video feed at the door. Choosing between them comes down to function rather than coverage area — a paging speaker projects sound outward, while the GSC3570 gives a person a screen, a video call, and alarm inputs to act on.

Installation and Deployment Notes

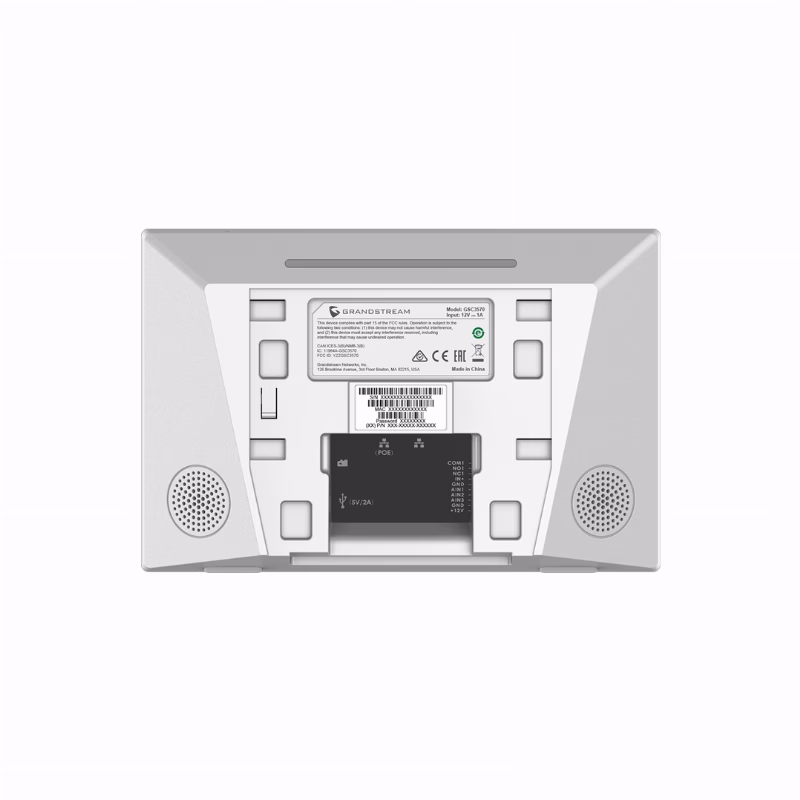

The box includes a wall mount bracket and a quick installation guide. At 1.14 lb, it mounts on a standard wall plate without special rigging. Dual 10/100Mbps PoE Ethernet ports give installers a choice of primary and secondary network connections, and the four SIP accounts let one station cover several lines — for example a gate line and an internal reception extension — without additional hardware. The microSD slot and four alarm inputs should be planned into the cable run at install time if local recording or door-contact monitoring is part of the deployment.

Package Contents

• GSC3570 Intercom
• Wall Mount Bracket
• Quick Installation Guide
