Grandstream GWN7003 Multi-WAN VPN Router for 150 APs

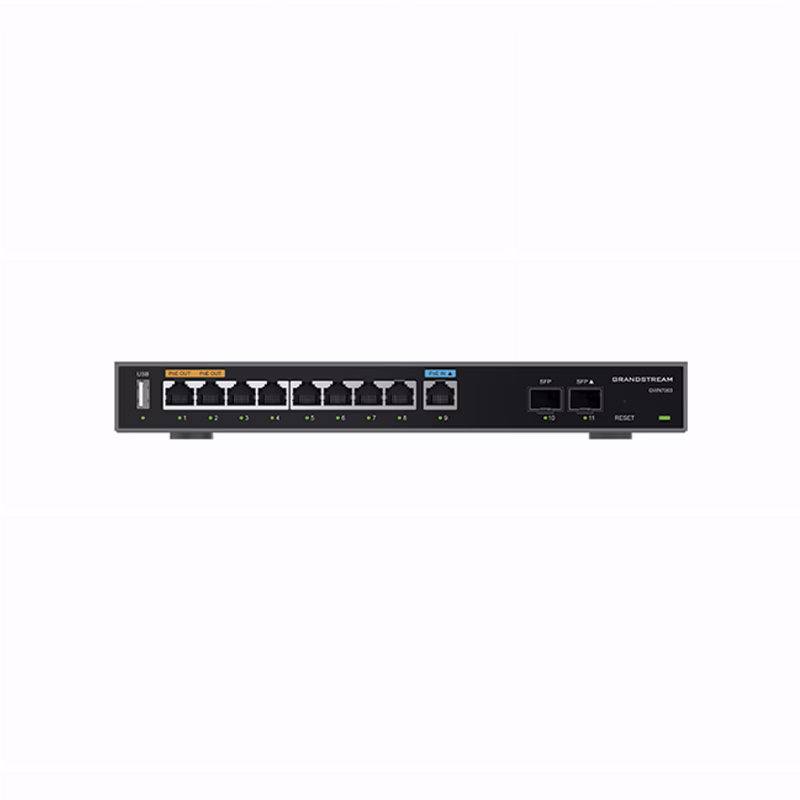

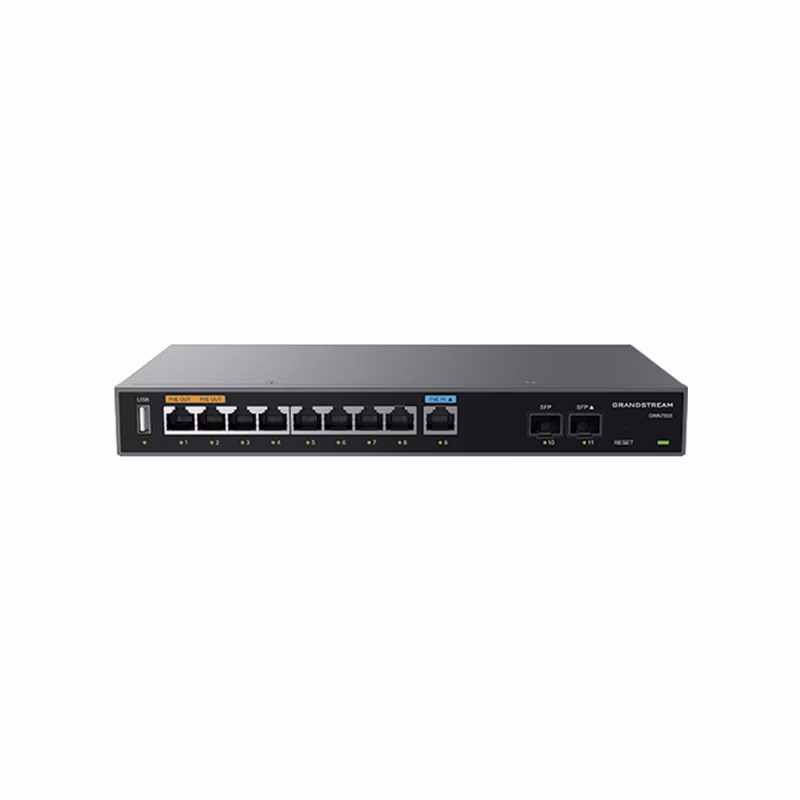

The Grandstream GWN7003 Router targets sites that need greater connection density and management capacity within the router family while retaining flexible WAN and LAN allocation. It carries nine Gigabit Ethernet ports and two Gigabit SFP ports, and every interface can be configured for either role around the network design. The unit supports 60,000 NAT sessions and 100 concurrent VPN tunnels, with 2.2Gbps NAT throughput and 530Mbps IPsec VPN throughput. It also manages up to 150 GWN access points and provides two PoE outputs for compatible devices. This profile suits an operations team that wants to terminate more links directly on the router, oversee a broader wireless deployment, and organize site-to-site connectivity from one desktop- or wall-mounted platform.

When does the Grandstream GWN7003 Router fit?

This model becomes relevant when the number of local and external connections is central to the design. Nine Gigabit Ethernet ports give the team room to separate devices, network zones, and provider handoffs, while two Gigabit SFP ports add further link options. Because all interfaces are configurable as WAN or LAN, the allocation can follow the site’s actual topology rather than a factory-fixed split. A Dual ARM Cortex-A53 processor running at 1GHz handles the workload, accompanied by 512MB of RAM and 256MB of flash memory. Those resources, together with the published session and tunnel capacities, give planners concrete limits to compare with branch activity, remote users, and managed access-point demand.

Defined capacity for denser networks

The 60,000-session NAT ceiling is a useful planning reference for sites where many endpoints generate simultaneous connections. Support for 100 concurrent VPN tunnels similarly provides room for a broader set of remote relationships within a declared limit. The 2.2Gbps NAT rating separates general routed traffic from the 530Mbps IPsec VPN rating, allowing the engineer to estimate internet flows and encrypted tunnel flows independently. Management for 150 GWN access points makes the GWN7003 especially relevant when wireless coverage spans many operating areas. Thirteen single-color LEDs provide local visual status, while a USB 2.0 port and a reset pinhole give technicians defined physical touchpoints during deployment and support.

Saudi business deployment scenarios

The GWN7003 can serve a medium-sized headquarters or a central branch that aggregates several departmental connections and maintains multiple VPN relationships with other locations. In an education facility, hotel, or clinic complex, management for 150 GWN access points supports a wireless footprint distributed across floors or operating areas. A large retail or service site can also use the higher port density when its plan calls for connecting separate devices, gateways, and network segments without adding an unplanned distribution layer. Supported connection types include DHCP, Static IP, PPPoE, PPTP, and L2TP, giving the engineer several ways to align the unit with a provider handoff or an established organizational network.

How the GWN7003 differs from the GWN7002

The GWN7003 is the higher-capacity family choice when the plan requires more Ethernet interfaces, additional NAT sessions, more VPN tunnels, greater RAM, and management for a larger GWN access-point estate. The GWN7002 is better aligned with a site that can operate within a smaller port and capacity profile while keeping configurable WAN and LAN roles plus SFP connectivity. Choosing the GWN7003 therefore makes sense when the expanded connection and management headroom will be used by the project. The GWN7003 measures 260 x 149.35 x 35mm and weighs 1.096kg. It supports desktop and wall installation, and mounting brackets are included for preparing its place in the communications area.

PoE allocation and power planning

The GWN7003 accepts IEEE 802.3af/at PoE input and offers two PoE outputs supporting Passive 48V or IEEE 802.3af. Installers should set the output method to match each downstream device, with particular care around passive power. The PoE budget is 12.8W when using a 24V DC 1A source and 24.8W with a 24V DC 1.5A source. The router’s specified supply accepts 100-240VAC at 50-60Hz and delivers 24V DC 1A with 24W output. Power planning should therefore total the downstream demand, identify the source in use, and keep the combined output within the corresponding budget before devices are connected.

Installation, environment, and support cycle

Included mounting brackets, screws, and a ground wire help the implementation team prepare the GWN7003 for wall installation, while desktop placement remains available where the room layout permits it. The router operates from 0°C to 40°C and at 10% to 90% non-condensing humidity. Its storage temperature range is -30°C to 60°C. Package dimensions are 297 x 255.5 x 54mm, with a package weight of 1.443kg, giving receiving teams clear handling information. The box also contains the router, a universal power supply, a network cable, and a quick installation guide. Compliance covers FCC, CE, RCM, IC, and UKCA, and the 3-year warranty gives procurement teams a defined coverage period for asset and support records.

Package Contents

• GWN7003 Router
• Universal Power Supply
• Network Cable
• Screw × 8
• Ground Wire
• Mounting Bracket × 2
• Quick Installation Guide
