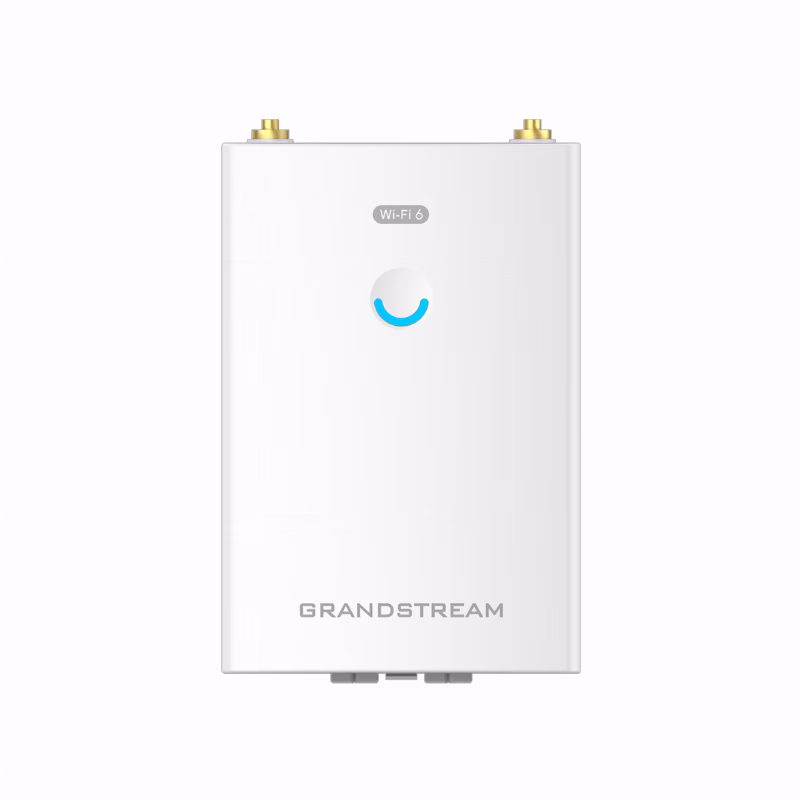

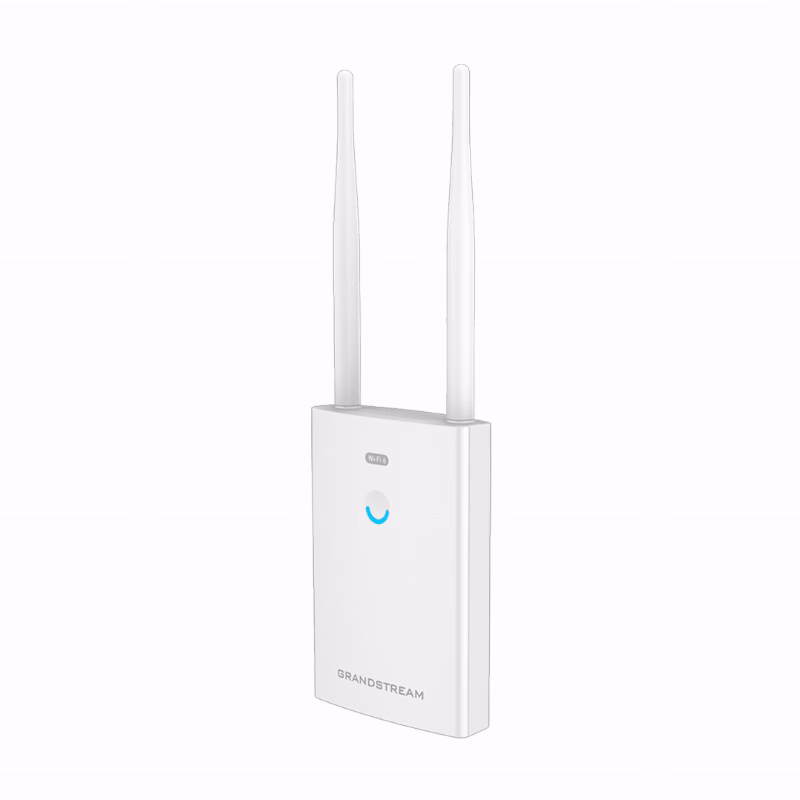

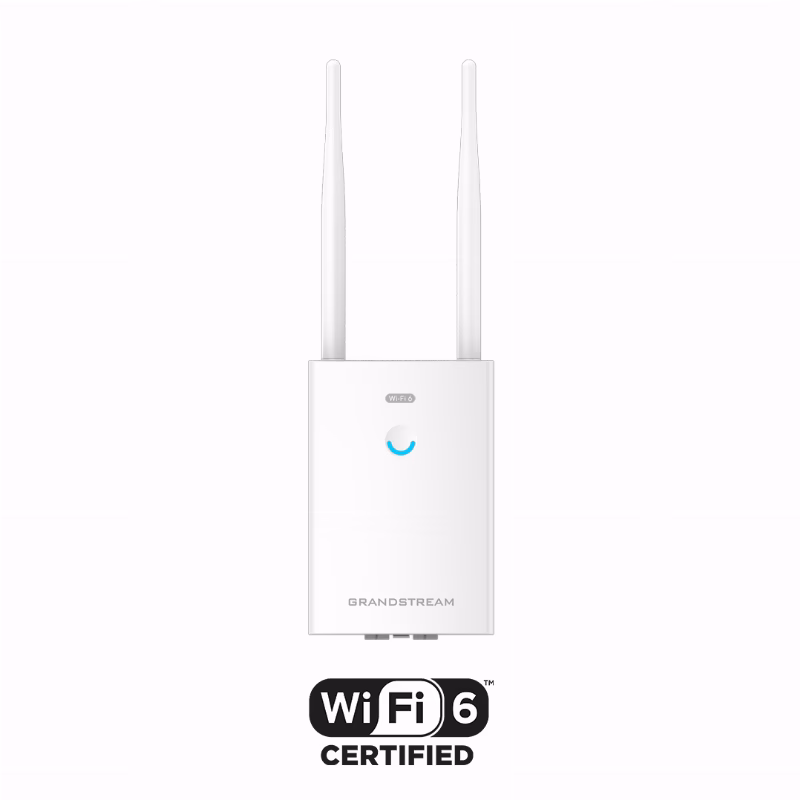

Grandstream GWN7660LR Long-Range Wi-Fi 6 Access Point

Grandstream GWN7660LR is built for sites that need wireless service beyond enclosed rooms and corridors. This long-range Wi-Fi 6 access point combines dual-band operation with an IP66 rating when mounted vertically, giving facilities teams a purpose-built option for yards, outdoor walkways, and exposed operating areas. Its coverage reaches up to 250 m, while its stated capacity exceeds 500 clients and its aggregate wireless throughput reaches 1.77 Gbps. Those capabilities make it relevant where both distance and device density matter. The purchasing decision should therefore begin with the area map, expected client distribution, mounting position, and available network cabling rather than treating it as another general indoor access point.

Why Grandstream GWN7660LR fits outdoor coverage

The defining advantage is its combination of reach and environmental resistance. Its IP66 rating applies when the unit is installed vertically, so orientation needs to be part of the installation drawing from the start. The operating range of -30 to 60 degrees Celsius gives operations teams broad temperature tolerance for exposed locations. Two detachable external dual-band antennas, each rated at 3.5 dBi per band, make antenna fitting an explicit part of deployment. With device dimensions of 358.3 x 115 x 45.3 mm and a weight of 695 g, installers can check that the selected mounting surface, fixings, cable approach, and service access suit the physical unit before work begins.

Wireless capacity for busy operating areas

The GWN7660LR supports IEEE 802.11a/b/g/n/ac/ax and uses dual-band 2×2:2 MU-MIMO with downlink and uplink OFDMA. In practice, this radio design is intended to coordinate traffic from multiple connected devices rather than letting a single active client dominate each transmission opportunity. The maximum stated rate is 1201 Mbps on 5GHz and 573.5 Mbps on 2.4GHz. Network teams can define up to 32 SSIDs, useful when employee, guest, operational, and managed-device access must be separated under the site’s own policies. Maximum figures establish the design envelope, while actual placement still needs to reflect obstacles, mounting height, radio conditions, and where clients gather across the intended area.

Saudi business settings where it makes sense

At warehouse compounds, the access point can address yards and movement routes between buildings when indoor radios do not cover the operational path. Industrial facilities can position it around outdoor work zones where handheld devices need connectivity within a planned footprint. Universities and large administrative campuses can use it for courtyards, open walkways, and waiting areas. Hospitality properties can also deploy it around external guest spaces where high client counts and weather exposure shape the requirement. A site survey should identify likely shadow zones before mounting positions and unit quantities are finalized. The 250 m maximum coverage is a useful planning boundary for this product, but it does not replace measurement around walls, structures, vehicles, and the site’s actual client distribution.

Positioning against GWN7661 and GWN7661E

The GWN7660LR has a distinct role beside the Grandstream GWN7661 and Grandstream GWN7661E. Both of those models are in-wall access points designed to place Wi-Fi and multiple wired connections close to room users, while the GWN7660LR emphasizes long-range outdoor coverage and environmental protection. For a hotel room or office where the requirement includes local wired device connections, the GWN7661 or GWN7661E follows the more direct installation pattern. For a yard, exposed passage, or outdoor operating zone, the external antennas, protected enclosure, and broader temperature tolerance of the GWN7660LR define its value. Within the in-wall choice, the GWN7661E raises wireless performance over the GWN7661, but neither takes over this model’s outdoor role.

Uplinks, power, and installation planning

Two Gigabit Ethernet ports give the network designer practical flexibility when arranging the wired connection at the mounting location. Power over Ethernet supports IEEE 802.3af/802.3at, and maximum device consumption is 12.9 W. That allows the PoE switch budget to be matched against the planned access-point count before installation. Cabling and mounting should preserve the vertical orientation required for the IP66 rating, while leaving reasonable access for inspection. The two external antennas also need to be attached and checked before radio testing. The package contains the GWN7660LR access point, mounting kits, and a Quick Installation Guide, covering the supplied hardware and initial guidance that the deployment team will handle on site.

A role-based purchasing decision

This model is a strong fit when the requirement is explicitly long-range outdoor Wi-Fi 6 with high client capacity. Support for 32 SSIDs helps architects create separate access contexts, while the two radio bands allow compatible clients to be distributed according to the site’s design. Package dimensions of 275 x 185.5 x 89 mm and package weight of 995 g can help receiving teams plan storage and handling for a multi-unit rollout. Before approval, compare the coverage plan with the 250 m ceiling, model the expected workload within the 500+ client capacity, and confirm suitable PoE ports and mounting points. That process positions the GWN7660LR as a clearly assigned outdoor network component, with its deployment decisions tied to distance, exposure, client load, and physical installation.

Package Contents

• GWN7660LR access point
• Mounting kits
• Quick Installation Guide
