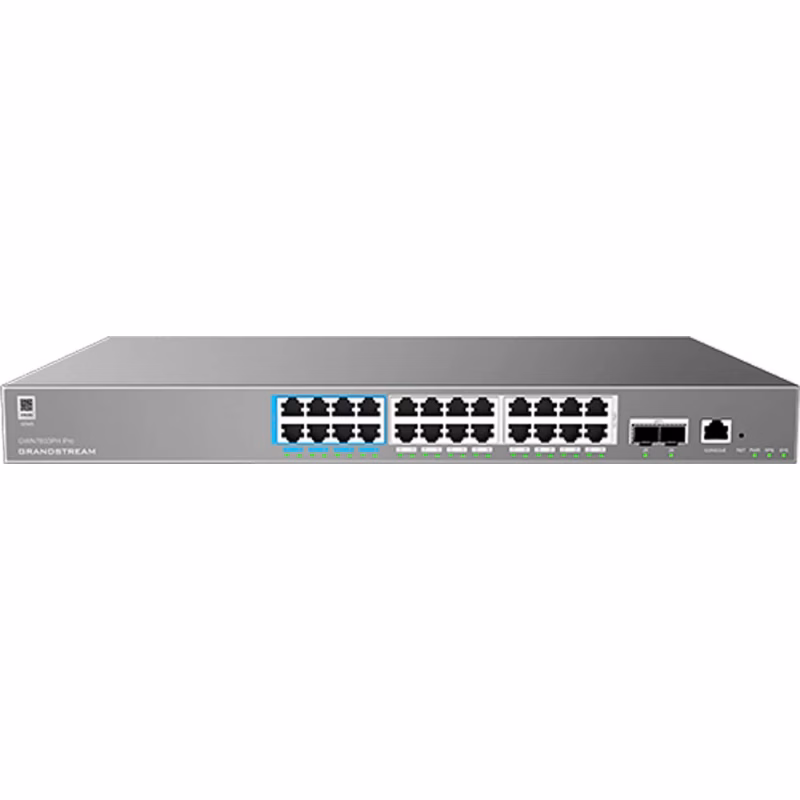

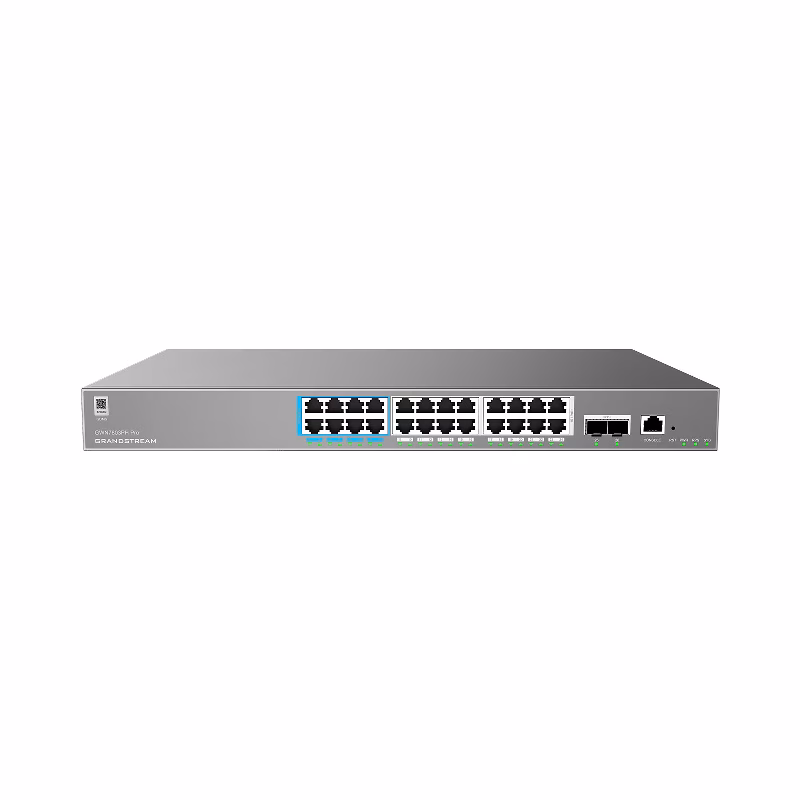

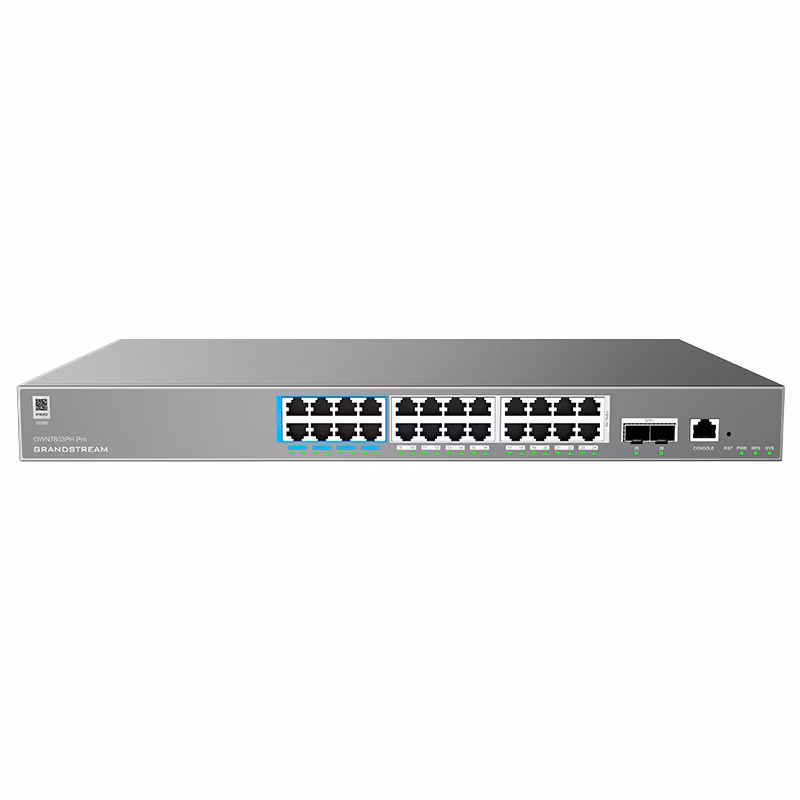

Grandstream GWN7803PH 24-Port PoE++ Switch

The Grandstream GWN7803PH is a managed Layer 2++ PoE switch shaped around higher-power IEEE 802.3bt delivery in a 24-port access format. Its access and management interfaces are 24 x Gigabit PoE RJ45; 1 x console; 1 x reset pinhole, while 2 x 10G SFP+ gives the installation dedicated paths beyond the copper edge. Power delivery is specified as IEEE 802.3af/at/bt; 24 PoE ports; up to 60 W per port, supported by a shared 400 W budget and 100–240 V AC, 50/60 Hz; 471.4 W maximum consumption; optional 460 W external RPS with 1+1 support. This profile helps a Saudi facilities or IT team place the model correctly before procurement: it is intended to aggregate powered network endpoints, apply managed access-layer control, and connect that edge toward the wider network. The choice is therefore driven by endpoint count, verified device draw, uplink requirements, and installation location rather than port count alone. Within the GWN7800 family, GWN7803PH occupies a distinct capacity and power position instead of serving as an interchangeable chassis.

Grandstream GWN7803PH in daily network operations

The GWN7803PH provides Gigabit Ethernet at the access edge and uses 2 x 10G SFP+ for upstream connectivity. The GWN7803PH switching engine is rated at 88 Gbps, with 44 Gbps of non-blocking throughput and a 65.472 Mpps forwarding rate. The GWN7803PH average latency specification is less than 4 μs, and its packet buffer is 8.4 Mb. These values give an administrator concrete references when checking whether expected voice, wireless, security, and ordinary business traffic can share the chassis. The GWN7803PH MAC address table is 16K, which informs planning for learned endpoints and network segmentation. The managed design means the switch belongs in an environment where addressing, traffic separation, access policy, monitoring, and change control are handled deliberately. A console port gives the team a local route for commissioning or recovery work.

PoE planning for connected devices

The GWN7803PH supports IEEE 802.3af/at/bt; 24 PoE ports; up to 60 W per port. The GWN7803PH shared power allowance is 400 W, so the deployment worksheet should total actual device demand and reserve sensible operating headroom. A per-port ceiling describes what one compatible endpoint may request; it does not turn the total budget into an unlimited supply across every socket. For that reason, engineers should classify phones, cameras, access points, intercoms, and other powered equipment by their verified draw before assigning ports. The GWN7803PH 100–240 V AC, 50/60 Hz; 471.4 W maximum consumption; optional 460 W external RPS with 1+1 support keeps the primary supply arrangement defined at the chassis level. This approach reduces dependence on individual injectors at endpoint locations, while preserving a clear need for circuit, grounding, heat, and backup-power planning in the communications space.

Use in Saudi commercial environments

The GWN7803PH is well placed for a facility zone combining standard endpoints with selected higher-draw cameras, wireless equipment, or other compatible powered devices. In such projects, centralized PoE can simplify maintenance because field devices return to a known managed cabinet instead of relying on scattered local adapters. The GWN7803PH also helps operations teams document which port serves each room, camera view, desk group, or wireless coverage area. Where business continuity matters, upstream path design and electrical backup should reflect the importance of those connected services. The GWN7803PH can support converged access, but voice, security, wireless, and user traffic still require an intentional logical design. Buyers should match the chassis to the number of live endpoints expected during the project period, not only the quantity installed on opening day.

How GWN7803PH differs from related models

The GWN7803PH should be compared with its siblings on powered-port density, supported PoE class, total power budget, and uplink format. Smaller models favor localized cabinets and lighter endpoint groups, while larger members consolidate more access connections. The PH variants are aimed at installations that need the higher IEEE 802.3bt power class; conventional P variants focus on IEEE 802.3af/at endpoints. The GWN7803PH is therefore the better fit only when its own combination of access count and power delivery matches the device schedule. Avoid choosing a larger sibling solely for unused sockets, and avoid choosing a lower-power sibling if documented endpoints exceed its supported class. This product-family view keeps capital planning connected to actual site requirements.

Placement, cooling, and physical preparation

The GWN7803PH supports Desktop or rack installation. Its cooling arrangement is 3 fans, which should guide placement around occupied areas and ventilation paths. The GWN7803PH supports jumbo frames up to 12,288 bytes, a setting that should be enabled only where the complete traffic path and connected equipment are configured accordingly. Before fitting the unit, confirm cabinet dimensions, cable bend space, patch-panel layout, earth connection, power outlet, airflow, and access for maintenance. Labeling both ends of every copper and fiber run will make later moves and fault isolation easier. The package hardware should be matched to the selected mounting method, while the communications room remains responsible for suitable rack support, electrical protection, and environmental conditions.

Uplink and capacity decisions

The GWN7803PH uplink provision is 2 x 10G SFP+. The network designer should decide whether those interfaces will serve aggregation, separate service paths, or resilience, then choose compatible optics or cabling. The GWN7803PH switching capacity of 88 Gbps should be considered alongside the 44 Gbps non-blocking figure rather than evaluated in isolation. The 65.472 Mpps forwarding specification provides another reference for packet-intensive workloads. If several powered devices generate sustained traffic together, upstream design must keep the edge from converging onto an undersized path. The GWN7803PH can be introduced into a new build or a staged refresh, provided port migration, addressing, power sequencing, and rollback are documented before the cutover.

Procurement checklist

Before ordering the GWN7803PH, count required copper endpoints, identify every powered-device class, calculate the 400 W PoE load, and reserve ports for realistic expansion. Confirm that 2 x 10G SFP+ suits the aggregation equipment already selected. Check that the chosen location supports Desktop or rack placement and accommodates the 3 fans design. Review the 100–240 V AC, 50/60 Hz; 471.4 W maximum consumption; optional 460 W external RPS with 1+1 support requirement against local distribution and backup arrangements. Finally, assign responsibility for configuration, monitoring, firmware governance, and recovery access. When those checks align, the GWN7803PH gives the project a clearly sized managed access layer rather than an oversized or underpowered compromise. Its value comes from matching the stated switching, power, and installation characteristics to a documented site plan.

Package Contents

• GWN7803PH Pro switch
• 25 cm ground cable
• Rubber footpads × 4
• Power-cord anti-trip
• KM3×6 screws × 8
• 1.2 m/10 A AC cable
• Simplified QIG
• Regulatory paper
• Rack-mounting kits × 2
