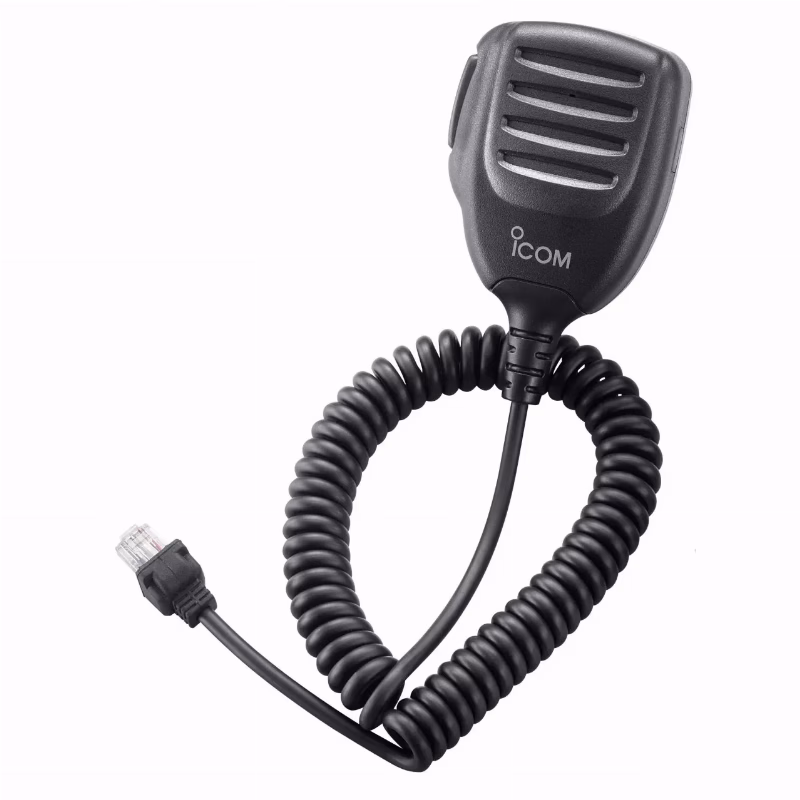

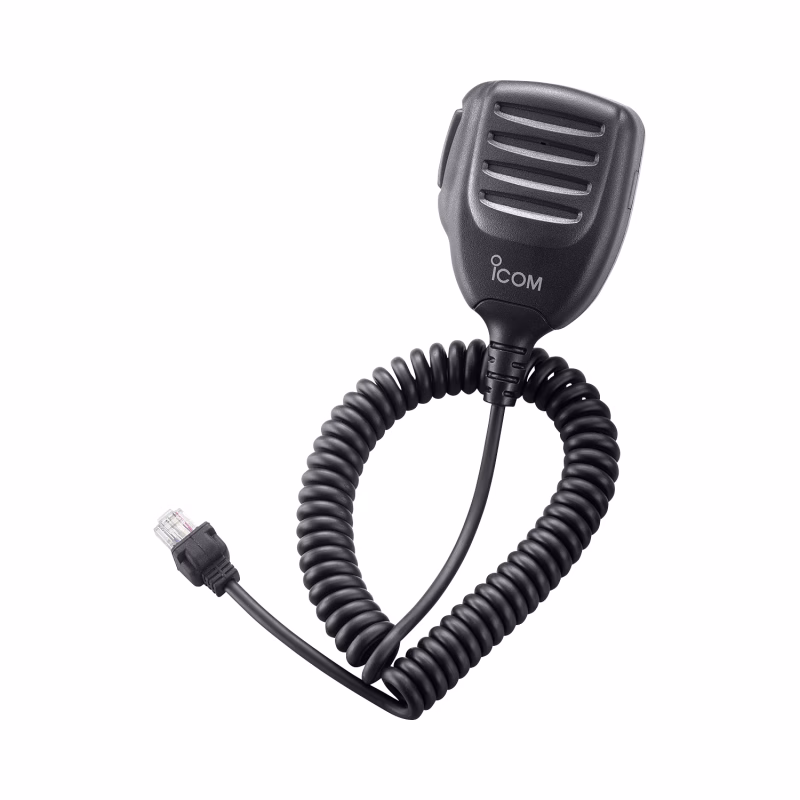

Icom HM-152 PTT Hand Microphone with Modular Plug

The Icom HM-152 PTT Hand Microphone is a direct voice-control accessory for compatible equipment, centered on the action an operator repeats for every call: a clear grip and a positive-click PTT that confirms the press by touch. It uses a standard condenser microphone and an RJ-45-style 8-pin modular plug, together with a coiled cable and a reinforced clothing clip. Its place in the Icom family is distinct from the transceivers themselves. The HM-152 replaces the HM-100N and does not add a frequency band, channel capacity, or RF output. It is for a buyer who needs to restore the talk interface on an existing compatible radio or keep one standardized spare for supported vehicles and operating desks.

Using the Icom HM-152 PTT Hand Microphone on Shift

The positive-click PTT gives the operator tactile feedback at the start of a transmission, useful when a driver or dispatcher is working without looking down at the microphone. Its durable switch supports repeated presses through a working shift, while the strengthened clip keeps the microphone on clothing or at a reachable holding point when it is not in the operator’s hand. The design stays focused on a simple workflow: lift the microphone, press to talk, release, and return it to its holder without navigating extra controls.

The coiled cable measures 900 mm when curled, giving the installer a defined figure for positioning the microphone hanger relative to the radio socket and operating seat. A coiled lead keeps more of its length gathered when it is not extended, helping on a vehicle console or dispatch surface where a straight cable could cross switches or paperwork. The microphone weighs 220 g, so its hanger or resting point should be firmly mounted rather than attached to a light edge that moves each time the operator retrieves the unit.

Where It Fits Security and Facilities Teams

The HM-152 fits maintenance and patrol vehicles that already contain a compatible Icom radio, because replacing the operating microphone restores the speaking point without changing the radio or its channel plan. It also suits control desks and guard posts using a supported mobile radio or repeater from a fixed position. The dispatcher can keep the microphone in a defined holder beside the operating panel or monitoring screen. In maintenance inventory, standardizing this model can simplify spares where a facility owns several supported units, provided compatibility is documented for each host device before parts are issued.

The microphone does not determine system coverage or radio range; those depend on the host transceiver, antenna system, and operating infrastructure. Its practical effect is at the voice-input point: PTT movement, cable reach, clip strength, and microphone handling. That boundary makes the purchasing decision clear. When the fault or requirement is the talk interface on a supported radio, the HM-152 is the appropriate class of part. A change to frequency bands or memory organization requires a different transceiver rather than a microphone replacement.

Compatibility and Replacement Planning

The HM-152 is specified for the Icom IC-A110 and the IC-F1610, IC-F510, IC-F110, IC-F5012, IC-F5022, IC-F5062, IC-F5122D, IC-F5130D, IC-FR3100, IC-FR5100, and IC-FR5300 series. Match the complete model name on the host equipment before ordering, since a similar-looking modular connector alone does not prove electrical or functional compatibility. The listed interface for this microphone is an RJ-45-style 8-pin modular plug, so the installer should inspect the socket and cable route at the operating position before mounting the hanger.

The HM-152 replaces the HM-100N, providing a direct replacement path for maintenance records that still use the earlier name. Recording both names in an internal spare-parts guide can prevent a technician from repeatedly requesting the superseded item. The microphone carries a 1 year warranty. That period can be entered in the asset record alongside installation date and host radio identity, making the accessory easier to track across a vehicle fleet or fixed communications room.

Its Role Against the Family Siblings

The HM-152 is fundamentally different from the IC-2300H and IC-2730E. Those products are mobile transceiver units, while the HM-152 is a hand microphone that supplies PTT control and voice input when attached to compatible equipment. Its channel count or RF output should therefore not be compared with those radios, and it is not purchased as a substitute for them. An operations manager selects this microphone when the existing radio platform remains suitable but the talk interface needs replacement or a ready spare.

Before deployment, the technician should inspect the plug, cable, and clip and choose a hanger position that is reachable without keeping the coiled lead under constant tension. The cable route should avoid sharp edges and moving points that could pinch the coils, and the plug should remain seated according to the host equipment’s installation method. After connection, the operations team can test voice clarity and PTT response on the host radio within its normal communications procedure. These steps keep the HM-152 a manageable service accessory instead of allowing a simple mounting or routing issue to become a recurring fault in the vehicle or control room.
