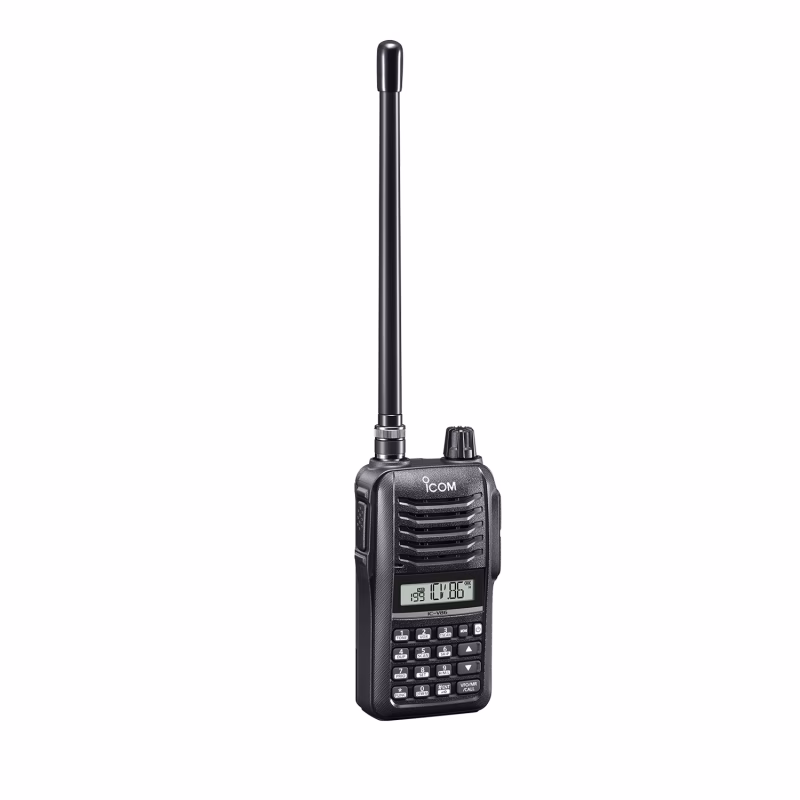

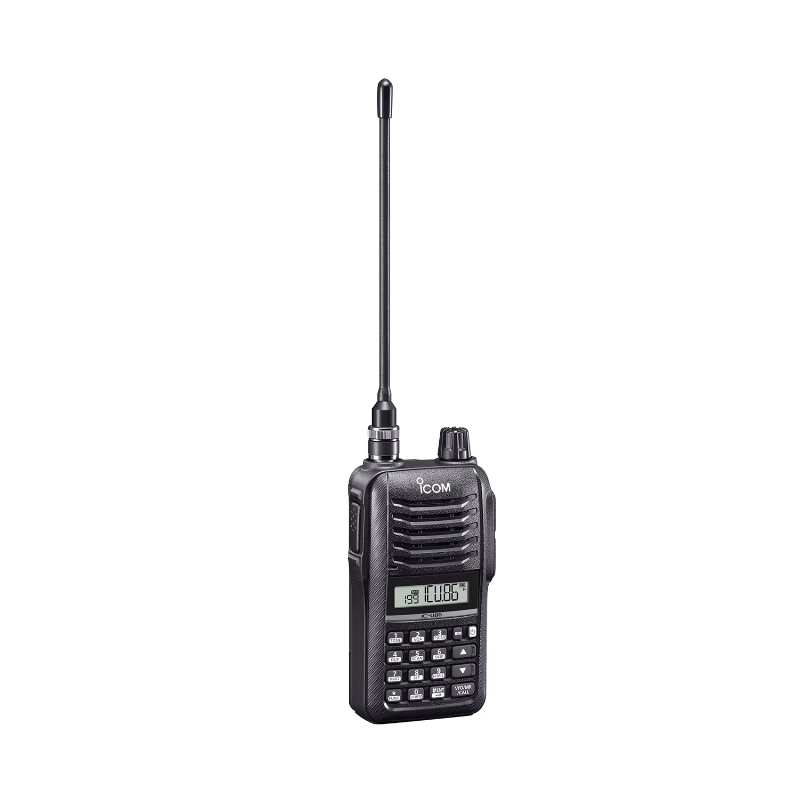

Icom V86 VHF FM Handheld Radio 7 W

The Icom IC-V86 VHF FM Handheld Radio is the channel-rich choice in a direct comparison with the V8, providing 207 channels for an operations team: 200 memory channels, 1 call channel and 6 scan edges. It is an analogue FM and FM-N radio that transmits from 144 to 148 MHz and receives from 136 to 174 MHz. Four output levels of 7.0, 5.5, 2.5 and 0.5 W let a radio manager align transmission with the site plan. Typical internal audio output is 1500 mW, while the BP-298 battery supports operation for up to 19 hours. Together, these points make the IC-V86 a practical option when channel organisation, selectable power and audible communications take priority in a portable IP54 unit.

Operating the Icom IC-V86 VHF FM Handheld Radio

The channel structure gives a communications lead a clear way to organise an operating plan. Memory channels can be assigned to teams, locations or tasks, the call channel can provide a defined quick-access position, and the scan edges support approved search ranges. Priority, program, memory, skip and tone scanning let the technician shape monitoring around the channels that matter to a control room or field supervisor. Built-in CTCSS and DTCS encoding and decoding can align tone settings with other FM or FM-N units in the same radio plan. Before handover, the team can document each channel name, purpose, tone, scan status and output level so users receive a consistent configuration.

For noisy work points, the radio provides 1500 mW typical output through its internal speaker with an 8 ohm load. Typical output through an external 8 ohm speaker is 550 mW. An operations team can test message clarity at the actual work areas and with the approved carry position, then set listening practice for each group. Integrated VOX also allows voice-operated use to be considered where the task procedure calls for it. Typical receiver sensitivity of -124 dBm, typical squelch sensitivity of -126 dBm, selectivity of 75 dB in wide mode and 70 dB in narrow mode, and typical intermodulation rejection of 65 dB give the radio technician defined receiver characteristics for a pre-rollout review.

Practical Uses for Saudi Operations Teams

The IC-V86 fits facilities, security and operations teams whose approved communications plan uses analogue VHF and needs clear separation across many channels. At a facilities complex, memory positions can separate maintenance, security and supervision, while priority scan keeps the designated channel under regular watch. In a warehouse or operating yard, the internal audio output can be tested near normal vehicle and equipment movement before the carry method is approved. For mobile service teams working across one site, the four power levels let the radio lead standardise the output assigned to each channel instead of leaving power selection to individual users during a shift.

IP54 protection addresses dust and water resistance to that rating, while compliance with MIL-STD 810 G and equivalent MIL-STD-810-C, -D, -E and -F methods provides a reference for reviewing field-equipment requirements. The specified operating temperature spans -20°C to +60°C, allowing an asset manager to compare the limits with expected conditions at the work point and in the planned storage location. Deployment should combine those characteristics with a site trial of transmission, reception, audio and carry position. That trial gives the buyer an actionable basis for selecting channels, output level, charging intervals and user instructions for each operating area.

Where the IC-V86 Sits Among Icom Siblings

The channel-count advantage is clearest when the IC-V86 is compared directly with the V8, because the V86 gives the programming team more room to organise memory while retaining the role of a portable analogue VHF radio. Other named family members carry higher ingress-protection ratings, so they serve a different protection priority. The IC-V86 instead combines its IP54 enclosure with output up to 7 W, 1500 mW internal audio and long operation with the BP-298. A procurement decision can therefore be based on the site’s real priorities, such as channel allocation, ingress exposure, operating method and energy plan, rather than treating every Icom family member as an interchangeable handset.

The IC-V86 can be configured directly from the radio, so day-to-day setting changes do not depend on a computer. For an organisation managing repeated configurations, optional PC programming and cloning are available through CS-V86 and OPC cables. This creates two practical deployment paths: a smaller issue that a technician can set from the handset, or a wider rollout that benefits from a controlled common configuration. Before cloning, the radio lead can approve channel names, frequencies, FM or FM-N mode, CTCSS or DTCS tones, output levels and scanning behaviour, then test the reference unit at the site before copying that configuration.

Battery, Carry and Handover Planning

Power options let an operations manager match the radio to the shift and charging process. The BP-298 Li-ion battery has a minimum capacity of 2100 mAh and a typical capacity of 2250 mAh, supporting up to 19 hours of operation. The BP-264 Ni-MH pack has a 1400 mAh capacity and supports up to 12 hours, while the BP-263 case provides an AA battery route. A manager can choose the pack around the planned duty period and charger access, then trial it under the site’s actual call pattern. The radio requires 7.5 V DC, and typical transmit current ranges from 1.6 A at EX High to 0.5 A at Low, useful inputs when reviewing the energy plan.

With the BP-298 fitted and projections excluded, the radio measures 58.6 x 112 x 30.5 mm. Approximate weight is 300 g with that battery and the FA-B57V antenna. These values help a supervisor test uniform placement, cabinet space and comfort over a complete round. The antenna uses a 50 ohm BNC connection, the external microphone uses a 3-conductor 2.5 mm connector, and the external speaker uses a 3-conductor 3.5 mm connector. Before a volume purchase, a sample unit can be fitted with the intended accessories and checked for access to push-to-talk and the rotary control while users wear their normal work equipment.

Supplied equipment includes either a BP-298 or BP-264 battery pack, the BC-240 desktop charger, BC-242 AC adapter, MB-124 belt clip and an antenna, with items varying by version. Receiving can start by matching the components to each radio, charging the battery, fitting the antenna and loading the approved channel plan. The team can then test transmission, reception, audio, scanning and VOX at the intended work points and record the battery, output and configuration against the assigned asset. The IC-V86 is made in Japan, and this controlled handover gives a facilities or security manager a sound basis for comparing it with its siblings around channels, protection, power and shift requirements.
