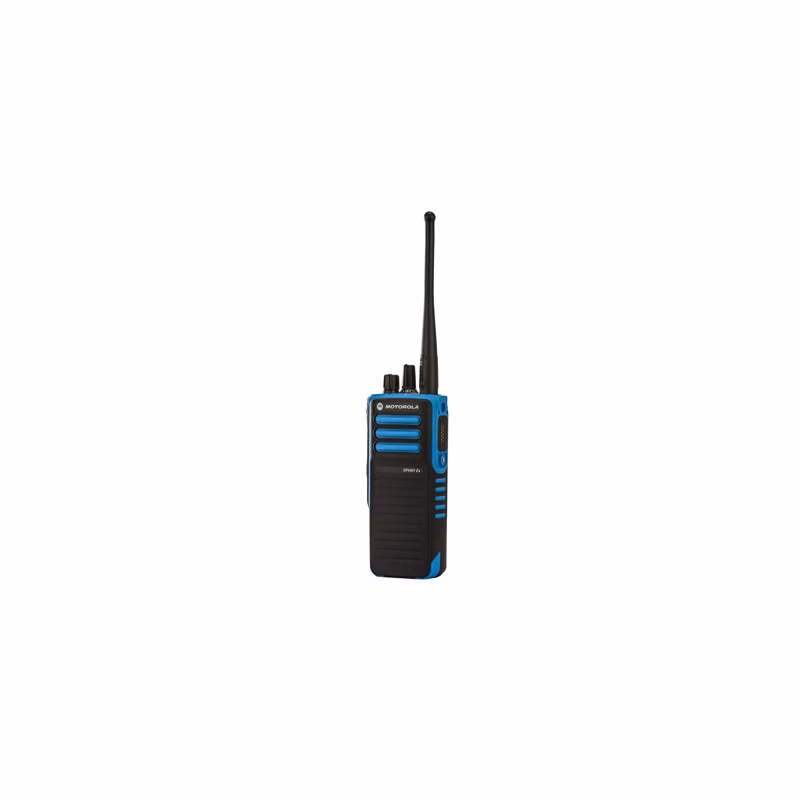

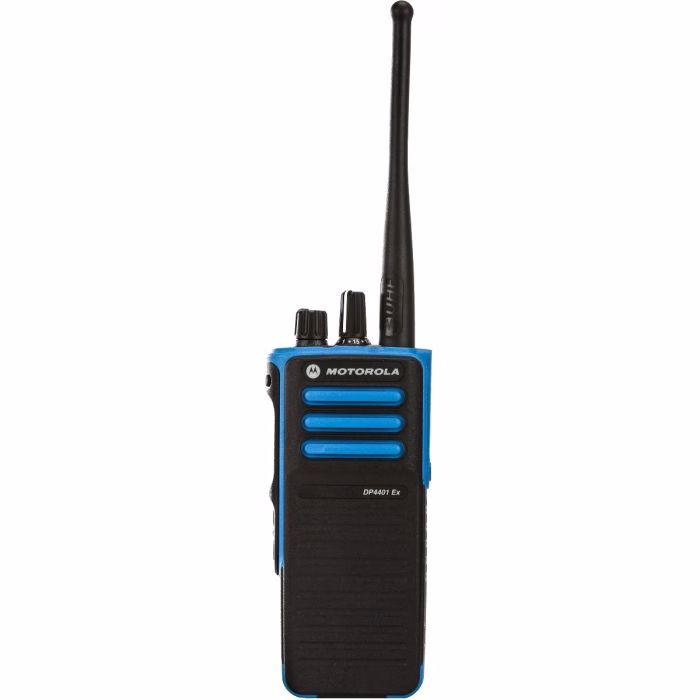

Motorola DP4401 Ex DMR Handheld Radio ATEX

The Motorola DP4401 Ex DMR Handheld Radio is intended for sites where classified-area requirements shape equipment selection before channel capacity does. It provides ATEX/IECEx capability and submersible IP67 protection, combining DMR digital and analogue signalling in a portable radio with 1 W output. The unit offers 64 channels and integrated GPS, while its display-free and keypad-free interface limits direct menu interaction during a task. A 1400 mAh Lithium-ion battery supports up to 19 h digitally and 16 h in analogue operation on a 5/5/90 cycle. This profile separates it from the wider family: selection rests on site protection needs and controlled operating practice, with a defined channel capacity that can be administered clearly.

Role of the Motorola DP4401 Ex DMR Handheld Radio

ATEX/IECEx capability makes alignment with classified-area requirements a primary procurement step. Safety and communications owners should establish the working-area classification and the version and configuration approved for the project, then keep the radio, battery, and selected accessories inside that site’s equipment procedure. The ATEX name alone is not the workflow; practical value comes from an issue, inspection, and maintenance process defining who uses the unit, where it operates, and how it returns to controlled storage.

IP67 adds a submersible protection profile for field work, while MIL-STD-810 C/D/E/F/G gives another reference for equipment requirements. Supervisors can build a pre-shift check around the radio body, battery attachment, and controls, then record exposure or damage when the unit is returned. This discipline matters at facilities where equipment cannot circulate casually, because the protection features perform as part of controlled asset management.

A Simple Interface and 64-Channel Plan

The radio provides 64 channels without a display or keypad. That design suits teams that want users concentrating on positions assigned to their role instead of changing the plan through a menu during a task. Communications managers can divide channels among operations, maintenance, security, and supervision, program the fleet around clear groups, and train each user on the required positions. The channel map should remain in a controlled external register because the radio does not present plan details on a screen.

DP4401 Ex supports 12.5, 20, and 25 kHz spacing and operates with DMR digital and analogue signalling. An organisation moving from analogue service can define phases while keeping frequency, spacing, and mode consistent across all radios expected to communicate. Its 1 W output is part of the model’s operating design, so the team should test calls in the actual areas and avoid drawing coverage conclusions from appearance or from another family model.

Battery and Working Cycle

The unit uses a 1400 mAh Lithium-ion battery. Operating time reaches 19 h in digital mode and 16 h in analogue mode under a 5/5/90 cycle. Asset managers can use these figures to build issue, replacement, and charging schedules while keeping each battery associated with the equipment configuration approved for the site. The difference between mode runtimes means a shift plan should follow the actual communications method rather than applying one assumption to every group.

Dimensions are 138.5 x 56.7 x 37.8 mm, which can guide planning for holders, controlled cabinets, and the approved carrying method. Before wider issue, a team can check how the unit is carried during movement or alongside personal protective equipment and identify a consistent, accessible position. The display-free interface reduces selection steps, but it also increases the importance of training users on channel positions and operating indications.

GPS and Saudi Industrial Use

Integrated GPS provides a location input for the system chosen by the organisation. At petrochemical facilities, fuel operations, or classified industrial areas, the unit’s location can form part of team allocation and task-following procedures, subject to the infrastructure adopted by the project. Maintenance operations can issue radios by area, record the assigned channel, and return every unit to a central inspection point when the task ends.

The model is available for VHF and UHF operation, so an order must identify the version aligned with the frequency plan and the rest of the radio network. The combination of 1 W output, digital and analogue signalling, and GPS makes DP4401 Ex one component of an engineered communications design. Field testing should cover operating routes, assembly points, maintenance areas, and the return path to controlled storage, with each role’s channels documented.

Choosing DP4401 Ex Among Motorola Radios

DP4401 Ex provides 64 channels, so it should be judged on whether that capacity is sufficient alongside ATEX/IECEx and protection requirements, not as the widest channel bank in the family. DM4601E, DP3661E, DP4800, and DP4801EX provide broader channel structures, while GP328, GP340, and T82 follow simpler plans. DP4401 Ex sits between those approaches and adds a classified-area profile that shifts the decision away from capacity alone and toward site suitability.

For environmental comparison, DP3661E carries a higher protection level, DP4801EX has a different immersion profile, and DP4800 uses another rating. DP4401 Ex makes sense when the project needs ATEX/IECEx capability, IP67, a display-free interface, and 64 channels together. A site without classified-area requirements may find a sibling more direct for its preferred interface, capacity, or deployment method.

Deploying DP4401 Ex Under Control

Implementation starts with the classified-area requirements, followed by selection of VHF or UHF and definition of the radios, batteries, and accessories included in the configuration. The team can then build the 64-channel map, assign a limited group to each role, and apply DMR or analogue mode and channel spacing consistently. A radio technician should test calls and GPS at the real work points before units are released to users.

Training should focus on recognising the channel position, making the call, returning the radio for inspection, and responding to visible damage. Because the interface has no screen or keypad, an issue register linking the asset to the user, area, and channel group is particularly useful. Charging schedules can reflect the stated runtime for each mode, with batteries returning to an approved equipment point after the shift. These controls make DP4401 Ex part of a reviewable safety and communications process instead of an isolated radio issued without operating context.

Package Contents

• radio station
• antenna
• 2075 mAh Li-Ion battery
• IMPRES charger
• belt clip
• documentation
