TYT ＴＹＴ-COMM-MUC Six-Bay Two-Way Radio Charger

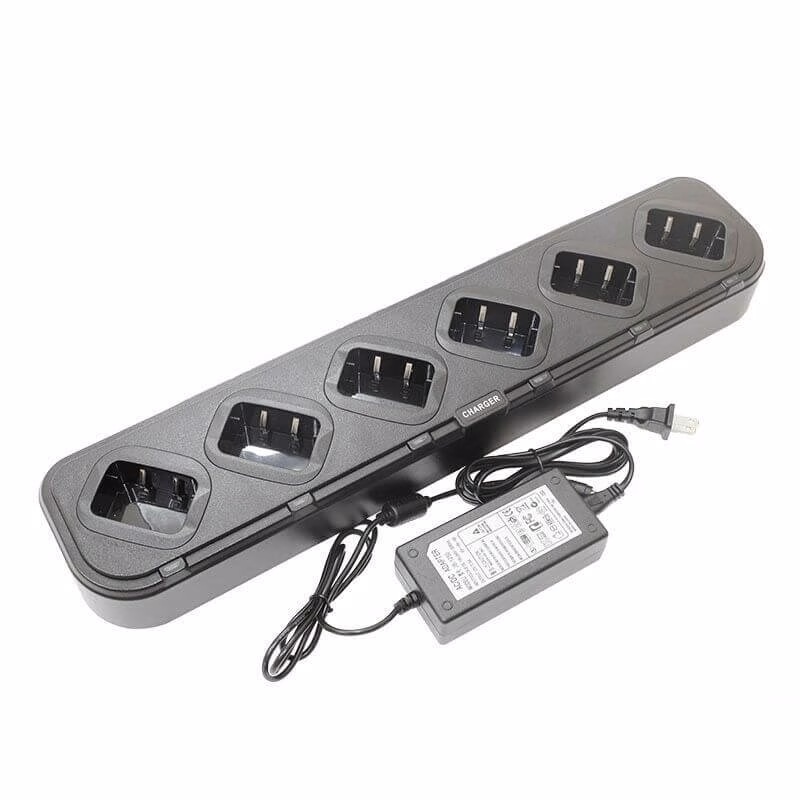

The TYT TYT-COMM-MUC six-bay charger organizes fleet charging at a shared station instead of spreading chargers across separate desks. Its 6 charging bays support the TYT MD-390, MD-680, TH-8200, and TH-UV8000D, allowing security, facilities, or operations managers to bring supported radios to a common equipment point. The unit can be wall mounted or incorporated into an equipment area to suit the site’s layout. It measures 49.5 × 11 × 6.5 cm, weighs 783 g, and uses polycarbonate plastic construction. Its adapter accepts 100–240 V AC at 1.6 A and 50–60 Hz, then supplies 14 V DC at 3.5 A. The package contains the six-bay multi-unit rapid charger and its PSU with a power cord.

Managing a Fleet with the TYT TYT-COMM-MUC Six-Bay Charger

This charger directs radio handover toward a central equipment point. At the end of an operating period, compatible radios can return to the same charging station and be issued to the next team from a known location. The 6 bays let an operations group organize several radios in a shared charging cycle, which fits a control room or equipment store better than managing a collection of separate desktop chargers. The included PSU and power cord also keep the station’s power arrangement together as a defined package during receiving, relocation, and reinstallation.

Wall-mounting support gives the site planner two practical placement approaches. The unit can remain on an accessible equipment surface, or it can move to a wall when the work surface is needed for radio handover and inspection. Overall dimensions of 49.5 × 11 × 6.5 cm provide a direct basis for reserving space before delivery. A unit weight of 783 g and adapter weight of 238 g identify the separate components that must be considered when positioning or moving the station. Polycarbonate plastic forms the charger body for its role as a multi-unit charging point.

Saudi Sector Uses for the TYT-COMM-MUC

In a security room serving a commercial or administrative facility, the station can become the return point for supported guard radios during shift handover. In warehouses and logistics operations, it can collect compatible radios from receiving and dispatch teams while equipment responsibility stays with the operations desk. The same centralized pattern fits a facilities workshop that stores maintenance radios in a shared tool room, or an event site that receives supervisor radios after an operating period. In every case, suitability starts with a model match to the MD-390, MD-680, TH-8200, or TH-UV8000D.

The adapter input of 100–240 V AC at 1.6 A and 50–60 Hz gives the deployment team defined electrical limits for checking the intended power point. Its output to the charger is 14 V DC at 3.5 A. A site technician can use those values to keep the correct PSU paired with the station instead of swapping adapters among different equipment. Receiving staff should also check the charger, PSU, and power cord as the complete supplied package before the station is assigned to an operational room.

Comparison with the TH-UV8000D Desktop Charger

The TYT-COMM-MUC differs from the TH-UV8000D desktop charger in how it distributes charging. This product serves an equipment room or handover point that needs 6 charging positions in one unit, while the desktop charger serves a distributed location close to a specific user. When radios return to a storekeeper or shift supervisor, the multi-unit station reduces the spread of the receiving process. When teams operate independently and do not return radios to a common room, distributed desktop points may follow the workflow more closely.

Both charger formats support the TH-UV8000D, but that shared compatibility does not make them the same choice. Procurement should begin with how many compatible radios return to the same point, where they are stored, whether wall mounting is useful, and whether the rest of the radio fleet matches the TYT-COMM-MUC compatibility list. This approach aligns the charging arrangement with equipment movement rather than selecting an accessory by radio model name alone.

Installation and Receiving Notes

Before placement, match site radios against the MD-390, MD-680, TH-8200, and TH-UV8000D, then select a surface or wall area that accommodates 49.5 × 11 × 6.5 cm. Include the 783 g charger and 238 g adapter as separate components in the mounting and relocation plan. At receiving, confirm the presence of the six-bay rapid charger, PSU, and power cord. Keep the PSU rated for 100–240 V AC input and 14 V DC output paired with the station so maintenance staff can identify the correct power source whenever the charging area is rebuilt or moved.
