Cassidian BTD-2N4 Bluetooth Audio Adapter for TH1N

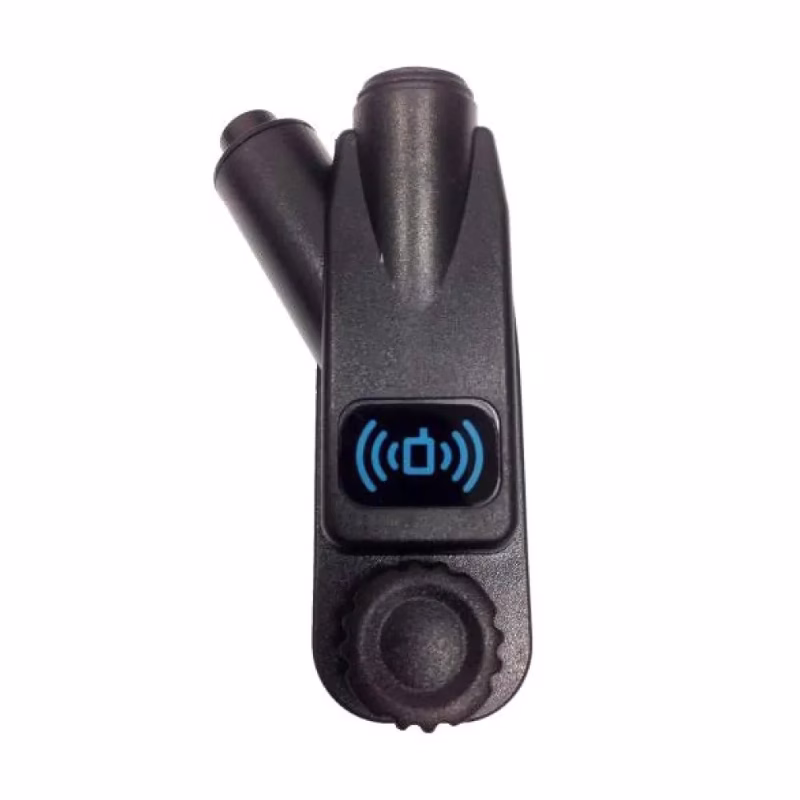

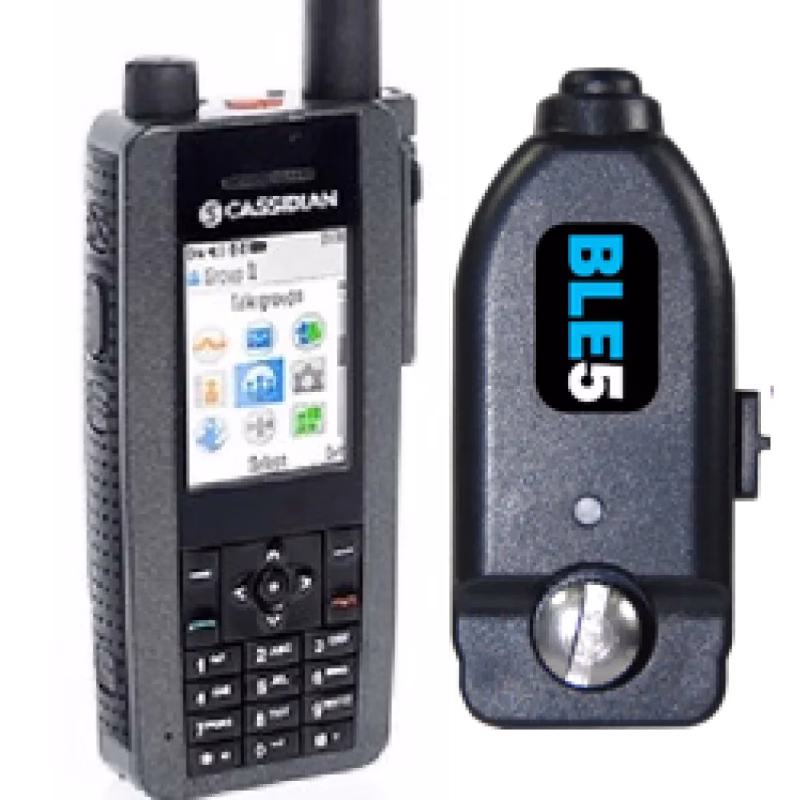

The Mobility Sound BTD-2N4 Bluetooth adapter is a portable-radio audio accessory made for the Airbus/EADS Cassidian TH1N. Its main practical advantage is adding Bluetooth audio and built-in PTT while drawing power directly from the radio accessory interface, so a crew does not have another adapter battery to charge, issue, or replace. The unit uses Bluetooth 5.0, operates as a Class 2 device, and provides a working range of up to 10 m, fitting tasks in which the radio, user, and audio endpoint remain close together. At 30 g, it adds little weight to an issued communications kit. An LED indicator also gives the operator a visible status reference during operation and shift checks. These characteristics position the BTD-2N4 as a focused audio and transmit-control accessory rather than a standalone radio.

How the Mobility Sound BTD-2N4 Bluetooth Adapter Works

The adapter handles wireless audio through HSP, HFP, and BLE profiles. Those profiles give a technical team a concrete starting point when selecting the Bluetooth endpoint to pair with it, rather than treating the presence of Bluetooth alone as proof of fit. Built-in PTT keeps the command to begin transmission on the accessory, which is useful for an operator who needs to listen and respond from a nearby control point while using a TH1N radio. The 10 m range should be planned as a close-working link, not as a replacement for the coverage delivered by the radio network. In a security room, operations desk, or loading area, the site team can place the radio and audio endpoint within that limit and then test the effect of the actual room layout and nearby equipment before handover.

Audio Processing and Signal Levels

The BTD-2N4 combines echo cancellation, noise reduction, Qualcomm CVC, and a high-quality DAC. In practice, that processing is relevant where the audio path must remain understandable around nearby speech, radio playback, or ordinary workplace noise. The adapter specifies a 350 mV audio input and a 20 mV RMS audio output. These figures give an integration technician useful reference points when checking levels or tracing audio that sounds too quiet or too loud during commissioning. Bluetooth transmit power is 1 dBm, while receiver sensitivity is -82 dBm. A technician can use these values alongside the Class 2 designation and 10 m range to build a repeatable acceptance check: pair the endpoint, verify listening, operate PTT, and repeat the test at the farthest planned working position.

Power and Security Considerations

The adapter has no battery of its own. It operates on 5-9 V DC supplied through the radio accessory interface, with an operating current of 13.5 mA and a 20 mA peak. These values let a fleet manager include the accessory in a TH1N runtime test after installation, particularly for long shifts with frequent PTT activity. Interface power also removes a separate charging cycle and spare-battery line from accessory maintenance. For security, the adapter supports AES-128 and ECC-256. Procurement and technical teams can record those mechanisms in the accessory security review while continuing to manage radio-network and user-access policies at site level. RoHS compliance also supports buyers who document material requirements for electronic equipment entering their facilities.

Saudi Business Use Cases for the BTD-2N4

The adapter fits sites that already operate Cassidian TH1N radios and want to add Bluetooth audio without replacing the handheld. At a shopping complex security desk, the supervisor can work through a nearby wireless audio path and use the built-in PTT, while the LED indicator provides a visible checkpoint during shift handover. For facilities and maintenance personnel inside buildings, the 10 m link suits a working pattern in which the radio and audio accessory remain with the same employee while moving between service rooms. The 30 g weight keeps the added burden on a daily communications kit limited, which matters when a staff member carries the radio through a full shift.

In warehouses and receiving areas, echo cancellation, noise reduction, and Qualcomm CVC are relevant when an operator must understand a message and answer through PTT around routine workplace sound. For event operations or temporary teams, power from the radio interface means the asset manager does not need a charger or spare battery dedicated to the adapter itself. At transport or operations control points, the HSP, HFP, and BLE profile list lets the technical team compare a proposed audio endpoint against the adapter before deployment. The purchase decision therefore turns on two practical conditions: the fleet must include the compatible TH1N, and a close-range Bluetooth audio link must match the way staff carry and use the radio.

Positioning the BTD-2N4 in a TH1N Radio Deployment

Buyers should classify the BTD-2N4 as a dedicated Bluetooth audio adapter, not as a new portable radio. The Cassidian TH1N remains the communications device, while the adapter adds the wireless audio path, built-in PTT, and audio processing. That distinction prevents the accessory from being ordered for a fleet outside its stated TH1N compatibility and helps procurement separate the cost of changing how staff listen and speak from the cost of replacing radios. Its focused role also makes acceptance criteria clear: successful pairing, intelligible audio, reliable PTT response, operation within 10 m, and a visible LED indication. Because it draws from the accessory interface, the unit enters the deployment as part of the radio assembly rather than as another separately charged device.

Deployment and Handover Notes

Deployment starts by identifying the Airbus/EADS Cassidian TH1N units that will receive the adapter, seating the BTD-2N4 on the radio accessory interface, and checking the LED indicator. The technician can then match the chosen audio endpoint to the appropriate HSP, HFP, or BLE profile, complete Bluetooth 5.0 pairing, and run listening and transmission checks with the built-in PTT. Testing should take place in the actual work position and across the expected separation up to 10 m, because the room layout determines where the radio and user can be positioned in daily operation.

During the audio check, the 350 mV input and 20 mV RMS output provide reference values for tracing a level mismatch, while echo cancellation, noise reduction, Qualcomm CVC, and the DAC should be assessed against the site’s normal operating sound. The technical team can record the 5-9 V DC supply requirement, 13.5 mA operating current, and 20 mA peak on the handover sheet, then compare TH1N runtime before and after fitting the accessory under the site’s real shift pattern. The security review should capture AES-128 and ECC-256 support within the approved communications controls. Finally, the 30 g accessory can be added to the issued-equipment record, with LED condition, PTT response, and audio quality included in the shift-start check. This process ties deployment to radio compatibility, endpoint fit, power behavior, and working distance: the factors that determine whether the adapter suits the site.
