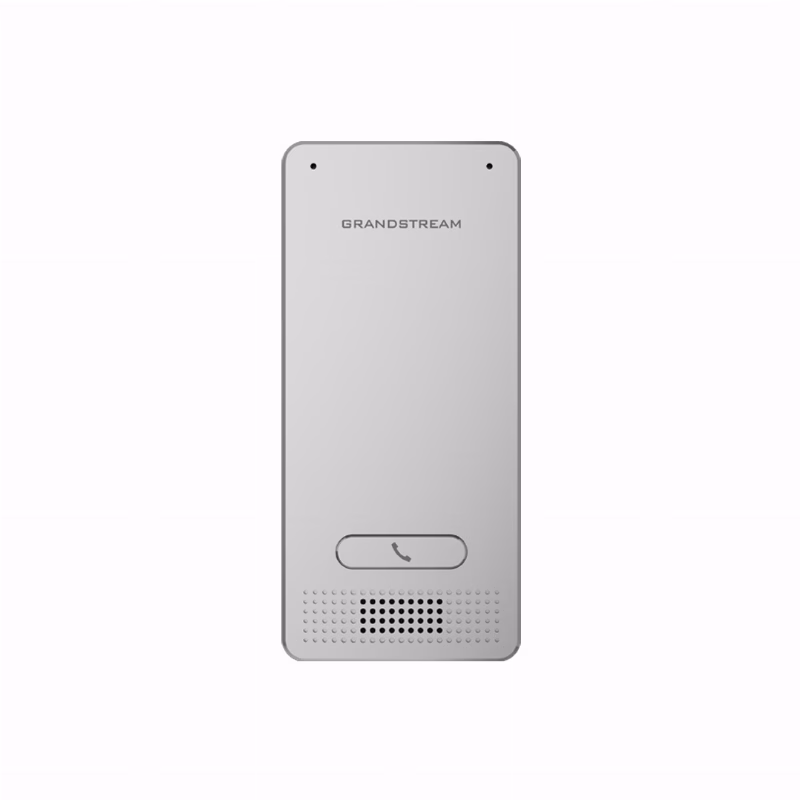

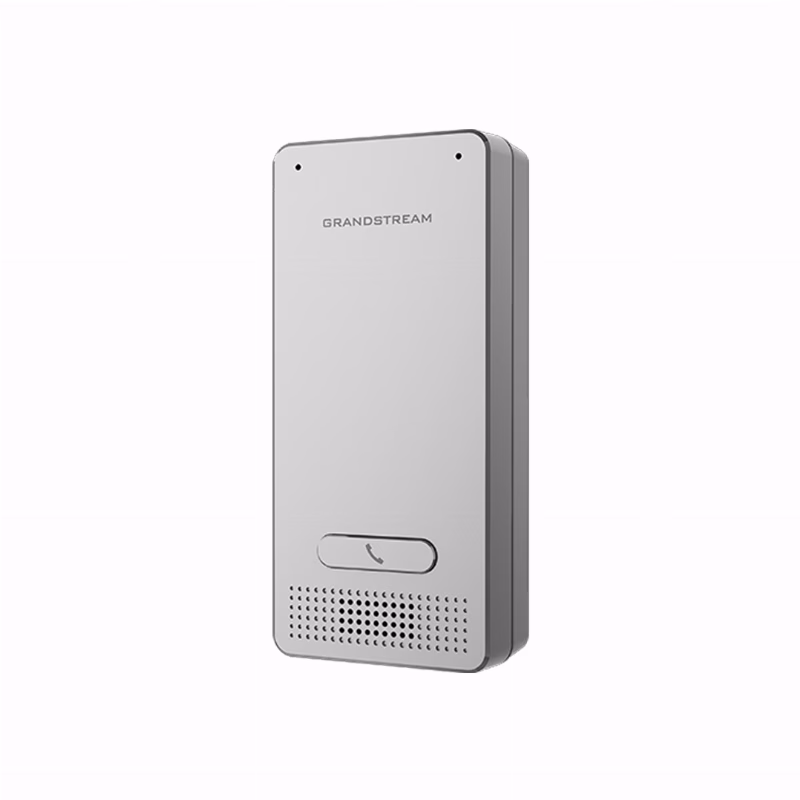

Grandstream GDS3702 IP Audio Door Intercom, IK10

The Grandstream GDS3702 audio intercom is built for entry points where a clear two-way call and a rugged enclosure matter more than a camera feed. It connects over a standard 10M/100M network port, draws power from PoE (IEEE 802.3af Class 3) or a 12VDC/1A adapter, and registers as a SIP endpoint so calls ring a desk phone, a mobile SIP client, or a reception extension without a separate intercom controller. A single call button is the only control on the faceplate, keeping operation simple for visitors and wiring straightforward for installers. The enclosure carries an IP66 rating against dust and driving rain, backed by an IK10 impact rating, the highest step on the vandal-resistance scale, so it holds up to the knocks a door-mounted unit takes in a public corridor, stairwell, or loading bay.

How the Grandstream GDS3702 audio intercom works in practice

Two-way audio runs through a built-in microphone rated for pickup up to 1.5 meters and an HD loudspeaker rated for clear playback up to 3 meters, enough for a visitor at a door to be heard clearly at a reception desk without raising their voice. Acoustic echo cancellation and active noise cancellation on the voice path keep the call intelligible over G.711, G.722, and DTMF signalling via RFC2833 or SIP INFO, so it interoperates with the SIP infrastructure a site already runs rather than requiring a dedicated intercom exchange. Two optocoupler alarm inputs and two relay outputs, rated 125VAC/0.5A or 30VDC/2A and configurable NO or NC, let the unit trigger a door strike, a gate release, or a local alarm panel directly from a call event, turning a talk-only intercom into a functioning access point rather than just a speaker on a wall.

Where it fits on a Saudi site

A single-button audio intercom suits secondary and service entrances more than a main lobby: staff gates, loading docks, plant rooms, or a compound’s back gate, where a guard or facilities team needs to hear who is asking for entry and release the door remotely, but a live video feed is not the priority. The -30°C to 60°C operating range and 10-90% non-condensing humidity tolerance cover an outdoor mount through a Saudi summer, and the IP66/IK10 rating means it can sit at a height a passer-by could reach without needing a protective cage. Because it registers as a standard SIP device, it can share a PBX with desk phones already deployed across a facility, so a receptionist or security post answers door calls from the same handset used for internal calls.

Positioning within the GDS37 series

The GDS3702 is the only device in this family without a camera: the GDS3710 and GDS3712 add a camera for a visual identity check before a door is released, and the GDS3725 and GDS3727 go further with a higher-resolution, AI-assisted sensor and a card reader for keyless entry. Choosing the GDS3702 over those models is a deliberate trade toward a lower-cost, audio-only point for a location where seeing the visitor is not required, alongside camera-equipped units at doors where it is. It shares the same IP66 environmental rating as every other model in the family, and its IK10 impact rating equals the toughest sibling, the GDS3712, so the audio-only choice is not a compromise on physical durability.

Deployment notes

The GDS3702 mounts on-wall or in-wall; the on-wall footprint is 173 x 80 x 36 mm and the in-wall cut-out is 217 x 120 x 11.6 mm, with the in-wall mounting kit sold separately from the unit itself. At 672 grams it is light enough for a standard gang box or a surface bracket without extra reinforcement. A single Cat5e or Cat6 run carrying PoE (802.3af Class 3) covers both power and the SIP connection, keeping cabling to one cable per door if a local 12VDC supply is not preferred. The unit carries CE, FCC, IC, RCM, and UKCA compliance markings for equipment placed at a building entrance.
