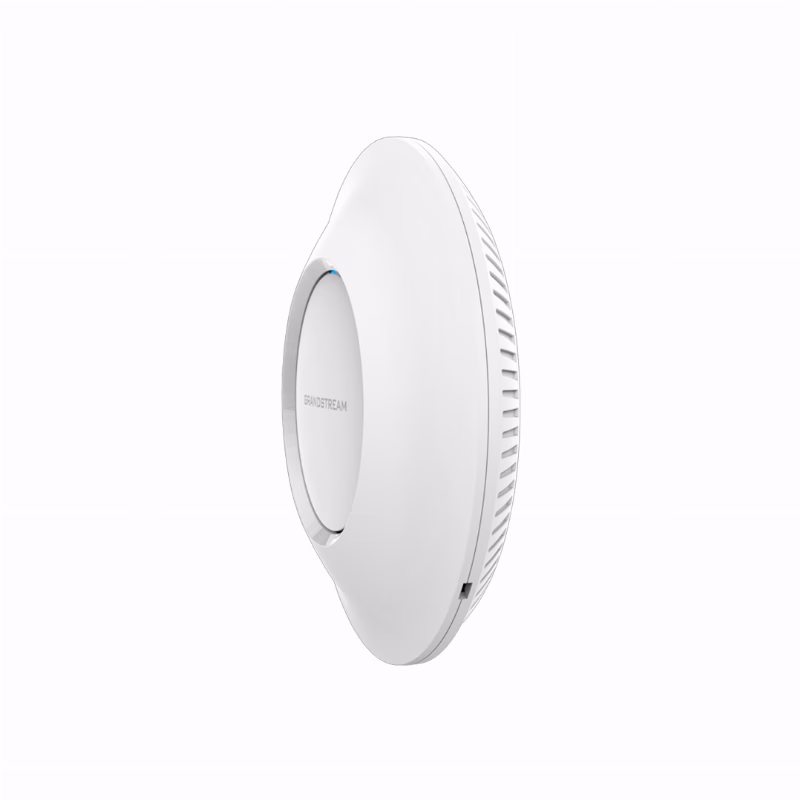

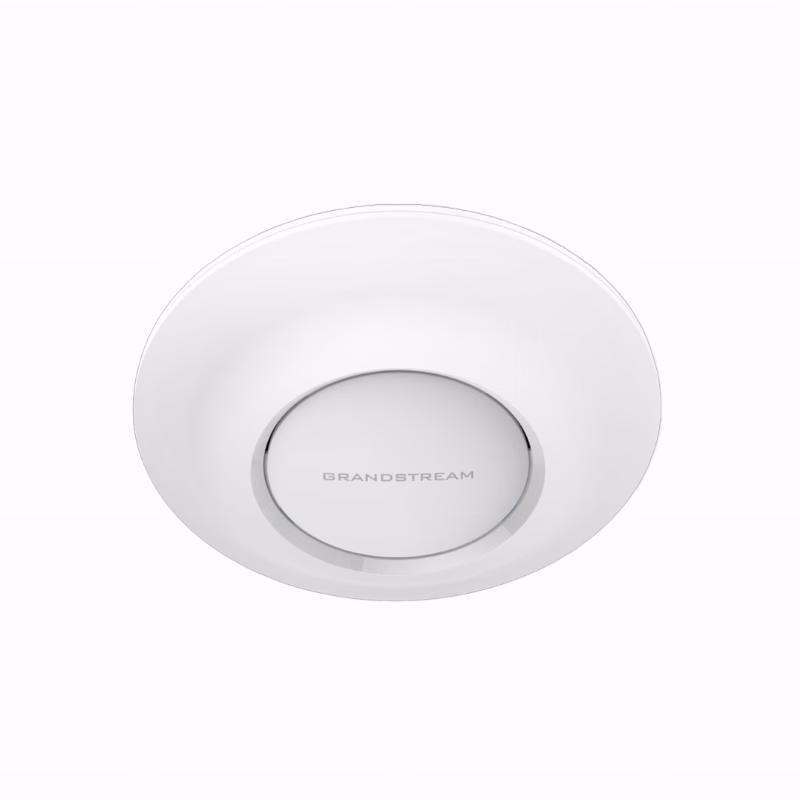

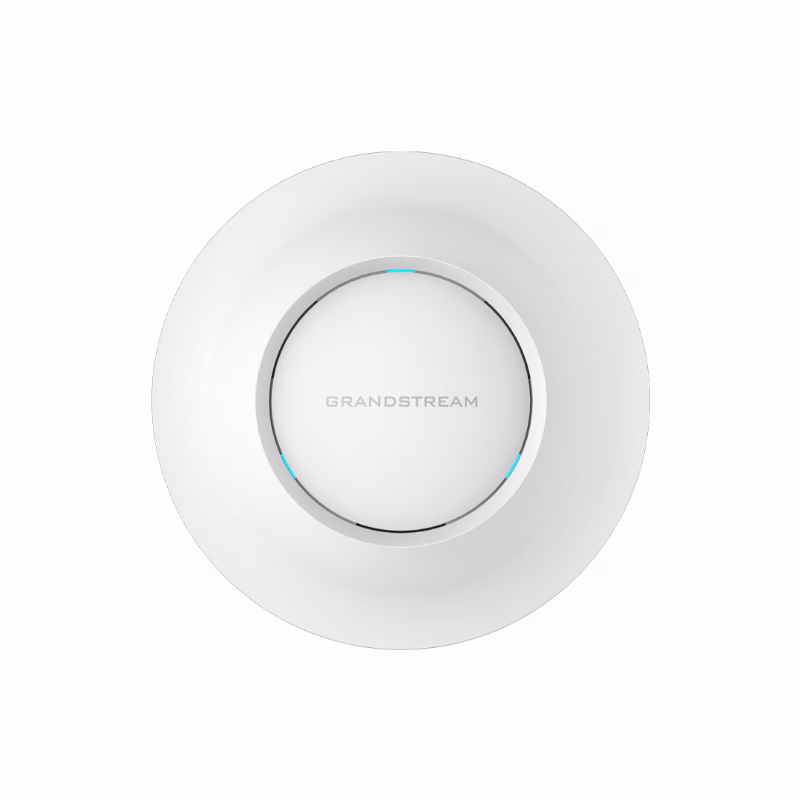

Grandstream GWN7605 Indoor Wi-Fi 5 Access Point

The Grandstream GWN7605 is aimed at indoor sites that need measured Wi-Fi coverage without moving to a higher-density model or an outdoor long-range enclosure. It combines dual-band Wi-Fi 5, a 2×2:2 MIMO radio configuration, and 1.27 Gbps of aggregate wireless throughput in a unit designed for wall or ceiling mounting. Its stated maximum range is 165 m, and it supports 100+ clients. That profile suits a medium office, service branch, clinic, shop, or teaching area after an appropriate site survey. Within this family, it occupies the balanced coverage and cost position: GWN7605LR is built for longer outdoor reach, while GWN7615 addresses denser indoor client populations.

Where Grandstream GWN7605 fits

This model makes sense when the objective is to cover a moderate indoor area with a planned number of access points. It can serve a central corridor, reception area, training room, sales floor, or cluster of offices. Ceiling placement can support more even distribution around the unit, while wall placement can suit a building where cabling or room geometry favors a side location. Two internal dual-band antennas keep the installation visually contained in customer-facing areas. The 165 m maximum range is a planning reference under suitable conditions, not a substitute for checking walls, building materials, interference, and where users actually work.

Support for IEEE 802.11a/b/g/n/ac Wave-2 allows the access point to accommodate devices from several Wi-Fi generations. Its 2×2:2 MIMO configuration operates across both bands, with MU-MIMO on 5 GHz. In practice, the network team can distribute compatible devices between the bands and use 5 GHz in areas where capable clients gather. The 1.27 Gbps figure is aggregate wireless throughput rather than a promise for one endpoint. Capacity for 100+ clients is useful in branches and moderately occupied workplaces, but good results still depend on sharing load sensibly and avoiding a design that leaves many users at the edge of coverage.

Network planning for Saudi operations

In a Saudi administrative office, separate wireless networks can be assigned to employees, guests, and operational devices within the limit of 16 total SSIDs and 8 per radio. The same flexibility can help a clinic separate work devices from visitor access, a retailer isolate operating equipment from guest traffic, or a training center accommodate changing user groups. A designer should not turn every organizational distinction into another SSID automatically. Each additional broadcast network adds wireless overhead, so the practical approach is to publish only those required by the operating plan.

Two autosensing 10/100/1000 Base-T Ethernet ports provide useful wired connection flexibility. Power comes through 802.3af/802.3at PoE, allowing a compatible cable path to carry network connectivity and power to a ceiling or high wall location. Maximum consumption is 10.16 W, a concrete input when calculating the PoE budget for a multi-unit rollout. Before installation, the team should check switch capacity, cable routes, terminations, and the proposed access-point position relative to physical obstructions. Those checks help prevent a convenient mounting spot from becoming a weak radio location.

Position versus GWN7605LR and GWN7615

GWN7605LR shares the general wireless foundation but is intended for outdoor pole or wall mounting and states a maximum range of 250 m. GWN7605 is therefore the closer fit for indoor areas that benefit from integrated antennas and ceiling or wall placement, while GWN7605LR addresses yards, outdoor passages, and farther coverage points. The LR label should not decide the design by itself; installation environment, weather exposure, coverage direction, and cable routing all matter. GWN7615 takes another path, supporting 200+ clients with 3×3:3 MU-MIMO and 1.75 Gbps aggregate throughput. It is positioned for more crowded indoor zones, whereas GWN7605 avoids paying for density the site may not need.

Installation and operating notes

The enclosure measures 180.4 x 180.4 x 40.8 mm and weighs 388.2 g, helping the installer confirm mounting space, surface suitability, and cable clearance. The package contains the GWN7605 wireless access point, mounting kits, and a Quick Start Guide, so the deployment team can prepare the Ethernet run and fixing location before arriving on site. Its operating temperature is 0 to 40 C. The indoor mounting position must remain within that range and should avoid concentrated heat or an unconditioned area that exceeds it. Compliance entries are FCC, CE, RCM, and IC.

Commissioning should finish with an on-site check of signal level, channel distribution, and real client load. If walls or local congestion create weak areas, the remedy may be a position change or another planned access point rather than increasing expectations of a single unit. That disciplined process is where the GWN7605 earns its place: a manageable indoor Wi-Fi 5 access point with defined capacity, Gigabit wired interfaces, PoE power, and a balanced role between the outdoor GWN7605LR and the higher-density GWN7615.

Package Contents

• GWN7605 wireless access point
• Mounting kits
• Quick Start Guide
