Grandstream GWN7630LR Long-Range Outdoor Wi-Fi 5 AP

Grandstream GWN7630LR is designed for sites that need to carry Wi-Fi beyond the building across a broad outdoor area while keeping coverage and capacity in practical balance. This long-range outdoor access point supports IEEE 802.11a/b/g/n/ac Wave-2, delivers 2.33 Gbps of aggregate wireless throughput, serves more than 250 clients, and has a maximum range of 300 m. Its dual-band 4×4:4 MIMO radio configuration includes MU-MIMO on 5 GHz. Wall or pole mounting gives the deployment team flexibility at the perimeter, in a yard, or between buildings, while the IP66 rating applies when the unit is installed vertically. These characteristics make placement discipline central to getting the intended result.

Where Grandstream GWN7630LR fits

The main buying question is whether the project needs extended outdoor reach together with substantial client capacity. The stated 300 m maximum range provides an initial reference when mapping access points around a facility yard, warehouse perimeter, loading area, parking zone, or walkway between buildings. Support for more than 250 clients also helps an operations team evaluate spaces where staff, handheld terminals, and other connected equipment may gather. A maximum range and client count are planning limits, not substitutes for a site survey. Obstacles, mounting height, user distribution, and the physical shape of the area still need to inform the final unit count and installation positions.

Radio and antenna design in practice

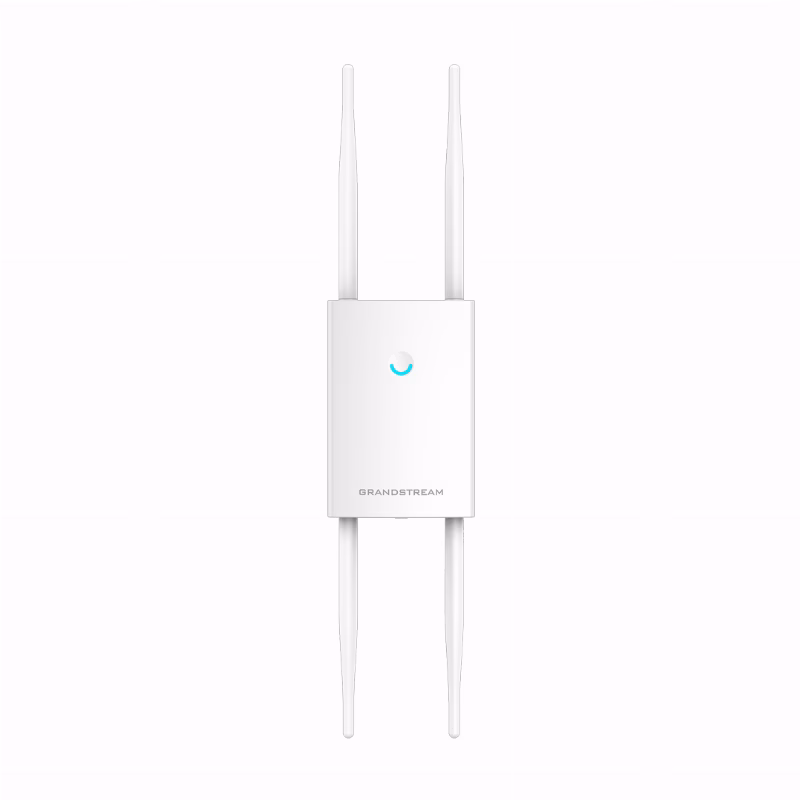

The dual-band 4×4:4 MIMO configuration allows the access point to work across 2.4 GHz and 5 GHz, with MU-MIMO available on 5 GHz. This arrangement is relevant when a site must accommodate varied client types while using 5 GHz in areas with heavier demand. The antenna system consists of 4 detachable dual-band omnidirectional antennas, each specified at 3.5 dBi on 2.4 GHz and 5 GHz. Detachable antennas make the physical antenna assembly a visible part of installation planning. Their omnidirectional pattern is suited to distributing service around the mounting position rather than concentrating it along one narrow path, so the chosen pole or wall location should reflect the intended service area.

Capacity and service organization

Grandstream GWN7630LR supports up to 16 SSIDs per radio. That gives the network designer room to organize multiple wireless service names for operational teams, guests, and work devices when the site design calls for them. It does not mean every deployment should use the full allowance. A smaller, clearly managed set can be easier for facilities and support teams to operate. The 2.33 Gbps aggregate wireless throughput is useful for classifying the access point during capacity planning, but it should be treated as a combined radio figure rather than a guaranteed rate for every connected client. Client mix and traffic demand should therefore remain part of the commissioning test.

Ethernet and PoE planning

The unit provides 2 autosensing 10/100/1000 Base-T Ethernet ports. This gives the infrastructure team two physical interfaces to account for at the installation point. Power is supplied through 802.3at PoE, allowing power and data to reach an outdoor position through a suitable Ethernet route without placing a separate electrical supply beside the access point. Maximum power consumption is 16.5 W. That figure belongs in the PoE budget for the supplying switch, especially when several access points share the same switch. The presence of two ports should not be used to assume an unlisted function for either interface; the final cabling plan should follow the approved network design.

Saudi site applications

The operating temperature range is -30 to 60 C, a material consideration for Saudi facilities evaluating exposed locations, hot service areas, or seasonal temperature changes. Suitable project contexts to assess include logistics yards, industrial compounds, residential communities, school courtyards, hospitality grounds, parking areas, and outdoor passages around healthcare or public facilities. The IP66 condition is specifically tied to vertical installation, so orientation needs to be stated in the work order and checked during handover. GWN7660LR should not be separated from this model on enclosure rating alone because GWN7660LR is also rated IP66 when installed vertically. The selection should turn on the project’s required radio, antenna, port, and placement characteristics.

Installation and handover details

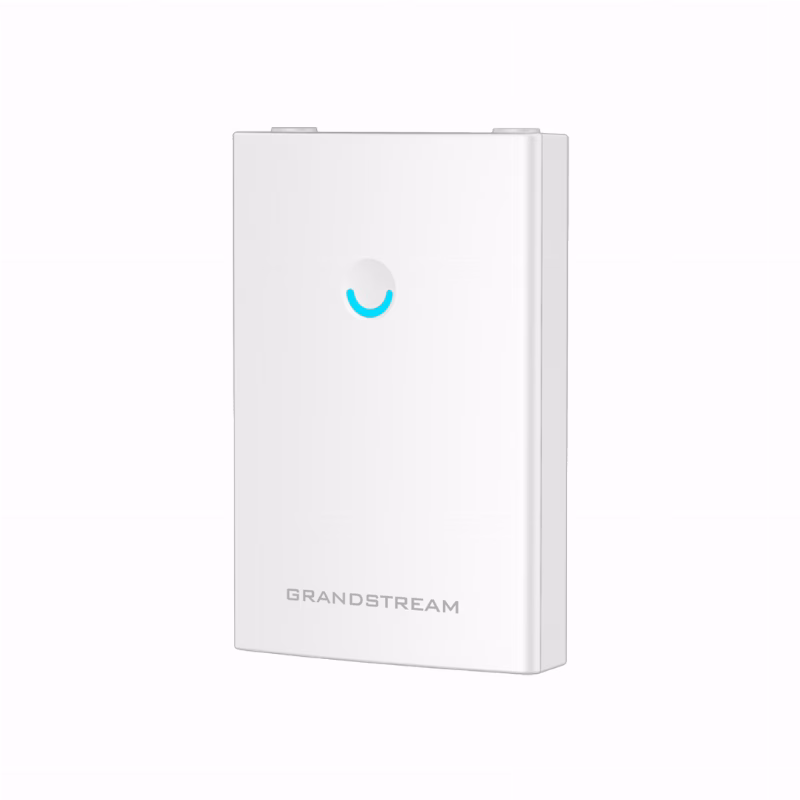

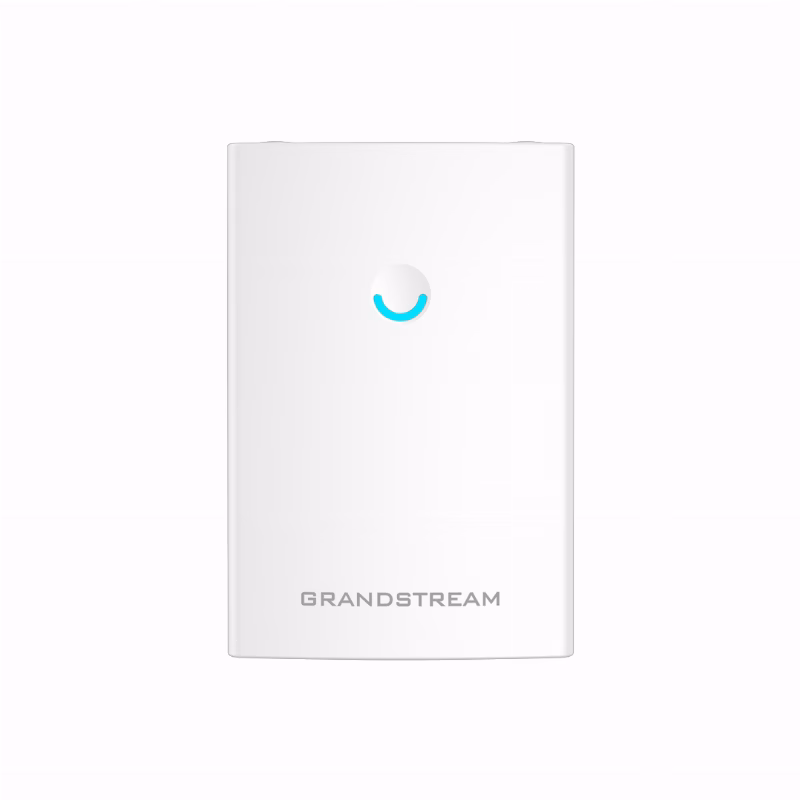

The access point measures 533.1 x 115 x 40 mm and weighs 564 g. Installers should confirm that the chosen wall or pole offers enough space for the body, detachable antennas, cabling, and mounting hardware. The supporting surface also needs to accommodate the unit and its mounting arrangement. Wall and pole options help align the equipment position with the intended coverage plan, while clearance around the detachable antennas makes installation and later access more manageable. The box contains the GWN7630LR wireless access point, mounting kits, and a Quick Start Guide. Before commissioning, the team can verify the 802.3at PoE budget, Gigabit cable route, vertical orientation required for IP66, and actual coverage and client behavior in the live site.

Package Contents

• GWN7630LR wireless access point
• Mounting kits
• Quick Start Guide
