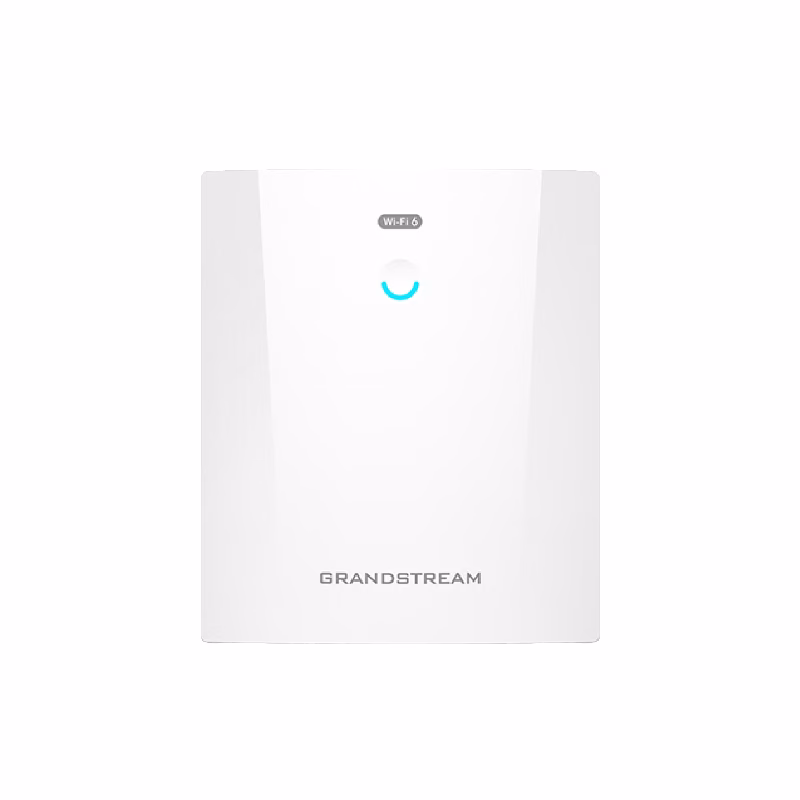

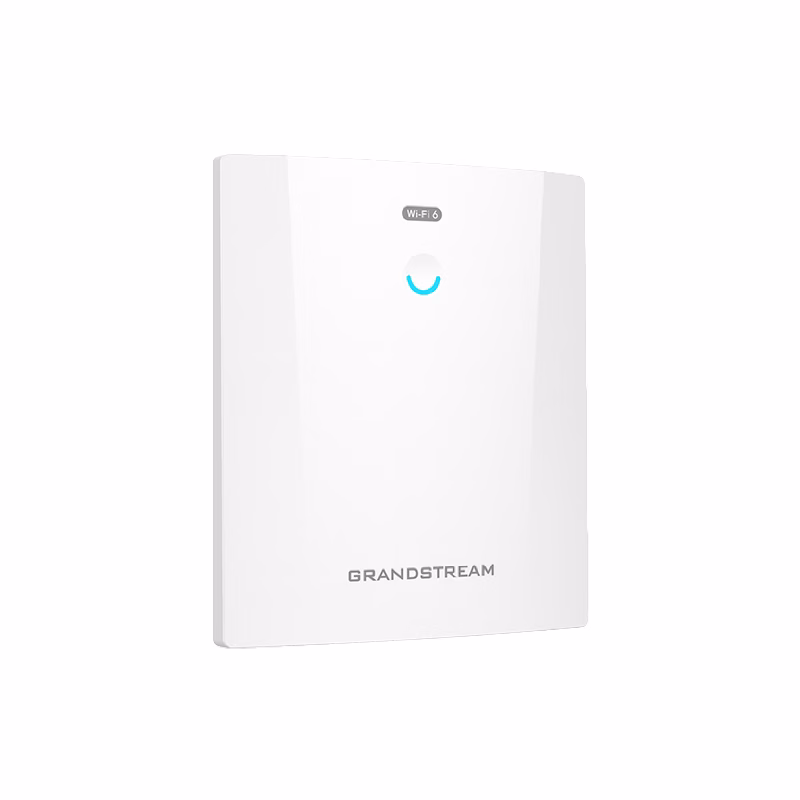

Grandstream GWN7660ELR Long-Range Outdoor Wi-Fi 6 AP

Grandstream GWN7660ELR combines long-range Wi-Fi 6 with an IP68 outdoor enclosure for projects that need extended coverage and more than one uplink format at the edge of a site. It provides maximum coverage of 300 m, 3 Gbps wireless throughput, capacity for 256 clients, and 32 SSIDs. The dual-band 2×2:2 MIMO radio includes OFDMA and works with 5 internal antennas. For the wired path, the unit offers a 1Gbps RJ45 port and a 2.5Gbps SFP port, while power comes from IEEE 802.3af/at PoE. This combination suits the evaluation of yards, walkways, and building perimeters requiring outdoor Wi-Fi 6 with a choice of RJ45 or SFP connectivity.

Why select Grandstream GWN7660ELR?

The buying decision begins with three requirements occurring together: an outdoor position, broad reach, and Wi-Fi 6. Maximum coverage of 300 m gives facilities teams an initial reference for mapping access points around a warehouse, compound, or operations yard. Capacity for 256 clients helps assess areas where staff and connected equipment gather, while 32 SSIDs provide room to organize wireless services according to the site’s network plan. These are maximum device figures, so implementation still calls for a site survey that reviews obstructions, mounting height, area shape, and usage distribution before the final access point count is approved.

Wi-Fi 6 radio and internal antennas

GWN7660ELR uses IEEE 802.11ax in a dual-band 2×2:2 MIMO design with OFDMA. This provides a defined current-generation radio platform for handling multiple client activity outdoors, while live measurements remain necessary before assigning a fixed rate to individual users. The 3 Gbps figure is wireless throughput for the access point and works best as a capacity classification during network design. Its 5 antennas are internal. Keeping the antenna system inside the protected body reduces external parts around the installation and gives the field team a contained equipment profile when preparing a mounting position.

Choosing the uplink interface

A central operational distinction is the combination of one 1Gbps RJ45 port and one 2.5Gbps SFP port. Infrastructure designers can include both interfaces in the uplink decision according to the route available at each outdoor position. RJ45 supplies a familiar Ethernet connection for a location reached by the corresponding cable path. SFP makes that interface type available where the site architecture is designed around it. No unlisted module or accessory should be assumed for either connection. The project team can match its chosen path and network equipment to the two physical interfaces present on the access point.

PoE and environmental limits

Grandstream GWN7660ELR accepts IEEE 802.3af/at PoE and has a maximum power draw of 13 W. This value helps determine how many units a supplying switch can power alongside the site’s other PoE devices. The enclosure is rated IP68, and the access point operates from -30 to 60 C. Compared with GWN7660LR, which is rated IP66 when installed vertically, GWN7660ELR carries IP68. GWN7664ELR also carries IP68, so enclosure rating by itself does not separate those two models. Radio, uplink, capacity, and placement requirements should complete the selection.

Outdoor applications in Saudi Arabia

Projects to assess include logistics yards, industrial perimeters, passages between school or university buildings, residential compounds, hospitality parking areas, and outdoor operations zones around facilities. The specified temperature range and IP68 rating allow environmental conditions to be checked directly against the site plan. In a large yard, the 300 m maximum guides the initial study before obstacles and mounting levels are tested. On a multi-building site, RJ45 and SFP allow the uplink type at each point to become an explicit design choice. In gathering areas, the client allowance and SSID count support service planning before field deployment begins.

BLE and integration planning

The access point includes BLE 5.2. That interface is relevant when a project has a defined BLE-dependent application, although application function and compatibility remain matters for the selected site solution. BLE does not need to drive the purchase when the operating requirement does not use it; its practical value is its availability for inclusion in the requirements review. The same discipline applies to the 32 SSIDs. The capacity exists, but the deployed number should follow a service structure that the network team can document and manage rather than an attempt to use the maximum allowance.

Physical and logistics details

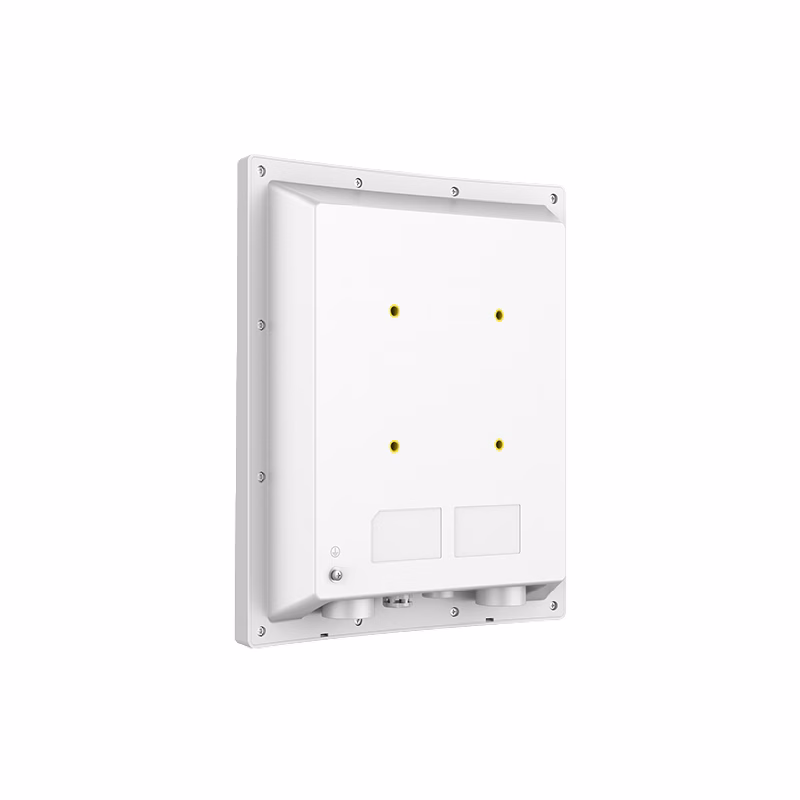

The unit measures 270 x 230 x 57 mm and weighs 1 kg with its mounting brackets. Package dimensions are 439 x 329 x 137 mm, and package weight is 2.4 kg. These figures help with internal transport, storage allocation, and moving equipment to field positions. The box contains the GWN7660ELR access point, mounting kits, and a Quick Installation Guide. At receiving, the team can match those items, then review the supporting surface, selected uplink route, and PoE source. Before handover, testing should cover actual reach, expected client activity, the planned SSIDs, and the chosen uplink interface in the real operating environment.

Package Contents

• GWN7660ELR access point
• Mounting kits
• Quick Installation Guide
