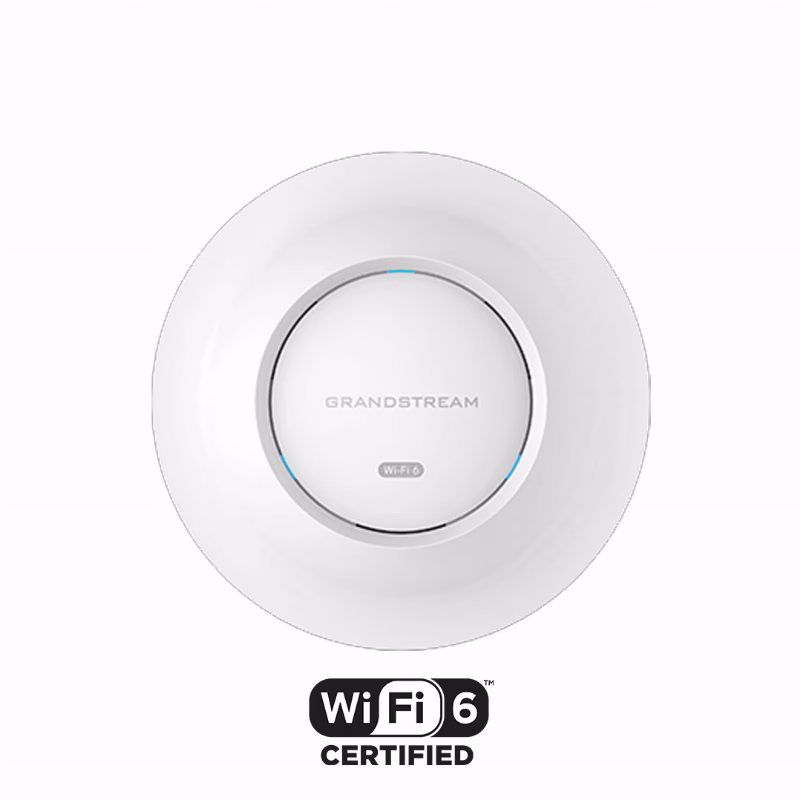

Grandstream GWN7660 Wi-Fi 6 Access Point for 500+ Clients

The Grandstream GWN7660 Wi-Fi 6 Access Point is built for indoor sites that need to connect a high number of devices without turning every access point into a separate management task. Its practical advantage is the combination of support for more than 500 clients, 1.77 Gbps aggregate wireless throughput, and coverage up to 175 m in a unit made for wall or ceiling mounting. Both radios use 2×2:2 MU-MIMO with downlink and uplink OFDMA, making the model relevant to offices and facilities where employee phones, computers, and operational devices connect at the same time. An embedded controller can manage up to 50 local GWN access points, while GDMS Networking and GWN Manager support other management approaches as the deployment grows.

How the Grandstream GWN7660 Wi-Fi 6 Access Point serves a site

The GWN7660 addresses two practical parts of an indoor wireless rollout: client density and traffic distribution across the available bands. It operates on 2.4 GHz and 5 GHz and supports IEEE 802.11ax alongside IEEE 802.11ac, IEEE 802.11n, and the earlier IEEE 802.11a, IEEE 802.11b, and IEEE 802.11g standards. A network team can therefore introduce a Wi-Fi 6 access layer while continuing to serve devices that use the supported earlier standards. The maximum data rate reaches 573.5 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz, so client placement and band policy can reflect device capability and workload instead of treating both radios as one undifferentiated resource.

Dual-band MU-MIMO and downlink and uplink OFDMA help organize service for many devices in a busy wireless environment. That design is useful in shared work areas, training rooms, visitor reception zones, and operations offices where concurrent connections increase during working hours. The unit can provide 32 SSIDs in total, with up to 16 per radio. This gives the administrator room to separate employee, guest, and operational-device access according to the facility’s network design. Each SSID can then be aligned with the intended VLAN and access policy during configuration and tested before it is made available to users.

Capacity and coverage for Saudi facilities

Support for more than 500 concurrent clients makes the GWN7660 a candidate for areas where many users and devices gather, including multi-department offices, training centers, clinics, retail floors, and customer-service areas. Capacity does not mean every connected device will generate an identical load, so procurement should begin with an inventory of client types, applications, and busy periods. Devices that benefit from the higher maximum rate can be guided toward 5 GHz, while clients that require 2.4 GHz can remain on that band. The team can then review distribution and usage through the selected management platform after launch.

Coverage reaches up to 175 m, and the access point uses two internal dual-band antennas with 3 dBi gain on 2.4 GHz and 4 dBi gain on 5 GHz. Maximum transmit power is 20 dBm on 2.4 GHz and 23 dBm on 5 GHz. These figures provide a starting point for site planning, while final quantities and locations must account for walls, building materials, client distribution, and local interference. In Saudi buildings with corridors and divided rooms, a site survey and verification in the actual work areas can show where one cell ends and another access point is needed before the rollout quantity is fixed.

Authentication and traffic separation

The GWN7660 supports WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, and WPA3 authentication methods. This range lets the administrator choose an approach that matches the site’s security policy and the capabilities of each client group. An employee SSID can be aligned with the enterprise authentication system used by the organization, while guest or dedicated-device networks can use the method approved for those clients. WPA3 can be included in the upgrade plan for compatible devices, allowing security policy to progress without replacing the access point.

Supported network and quality-of-service functions include IPv4, IPv6, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.11e/WMM, VLAN, and TOS. These functions allow the wireless layer to fit the wired network design, map wireless traffic to the intended VLANs, and apply prioritization in line with site policy. Before deployment, the network team should define each SSID, its VLAN path, authentication method, and permitted destinations. A pilot should confirm that employee, guest, and operational clients reach only the services intended for their group and that priority-sensitive traffic follows the planned treatment.

Wired connectivity and PoE planning

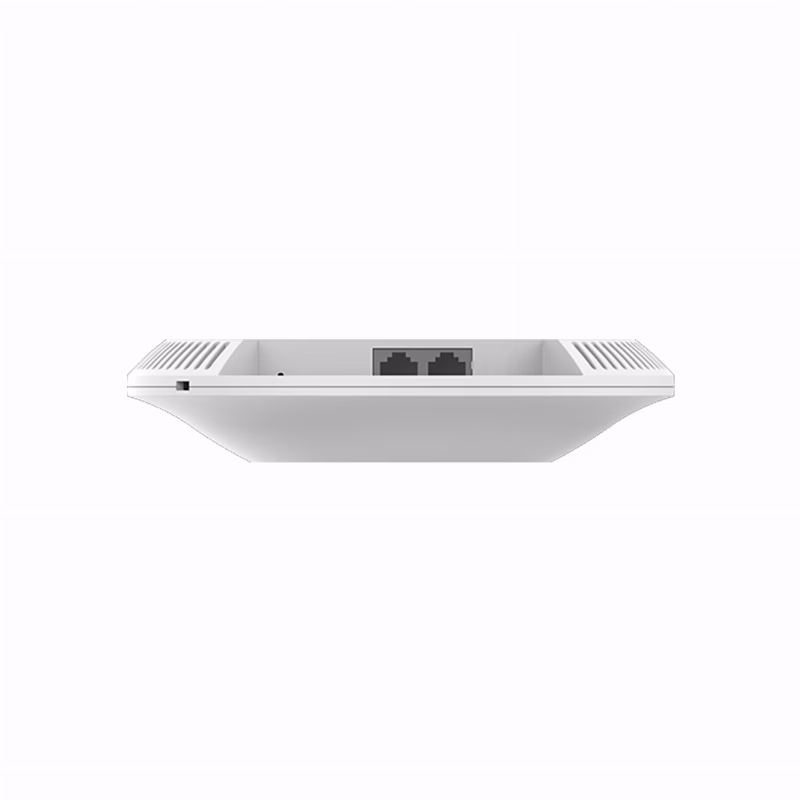

The GWN7660 provides two auto-sensing 10/100/1000 Base-T Ethernet ports. The two interfaces give installers flexibility when connecting the access point to the wired infrastructure, provided the role of each port is defined in the site design before cabling. Power is supplied through supported IEEE 802.3af or IEEE 802.3at PoE, allowing network data and power to use compatible cabling to a ceiling or wall position without requiring a separate electrical outlet beside the unit.

Maximum power consumption is 9 W. This figure is useful when the network engineer calculates the PoE budget of a switch serving several access points. The planned number of units can be assessed against the available switch budget while retaining the operational margin required by the site’s infrastructure policy. The team should also confirm that the selected switch ports support a compatible PoE standard and that cabling reaches every approved mounting point. Acceptance testing should verify startup, a stable Gigabit link, access to management, and availability of the required wireless networks.

Choosing a management path

A key deployment benefit of the GWN7660 is its embedded controller for up to 50 local GWN access points. This can suit a site that wants to manage a local group without adding a separate controller appliance. The model also supports GDMS Networking and GWN Manager, providing other paths when an organization manages distributed locations or prefers a centralized platform. The choice should follow the number of sites, team responsibilities, and maintenance process rather than only the access-point count in the first phase.

For a pilot, the team can configure one unit with the site’s actual SSIDs, authentication, VLANs, and quality-of-service settings, then test representative clients before reproducing the configuration. Local management capacity organizes control and configuration, but it does not replace radio planning. Channel use, transmit power, and mounting locations still need to be designed for the building. The 2.4 GHz radio supports 20 MHz and 40 MHz channel widths, while the 5 GHz radio supports 20 MHz, 40 MHz, and 80 MHz widths. These options allow the planner to balance channel capacity against overlap and interference in the intended environment.

Mounting, operating environment, and handover

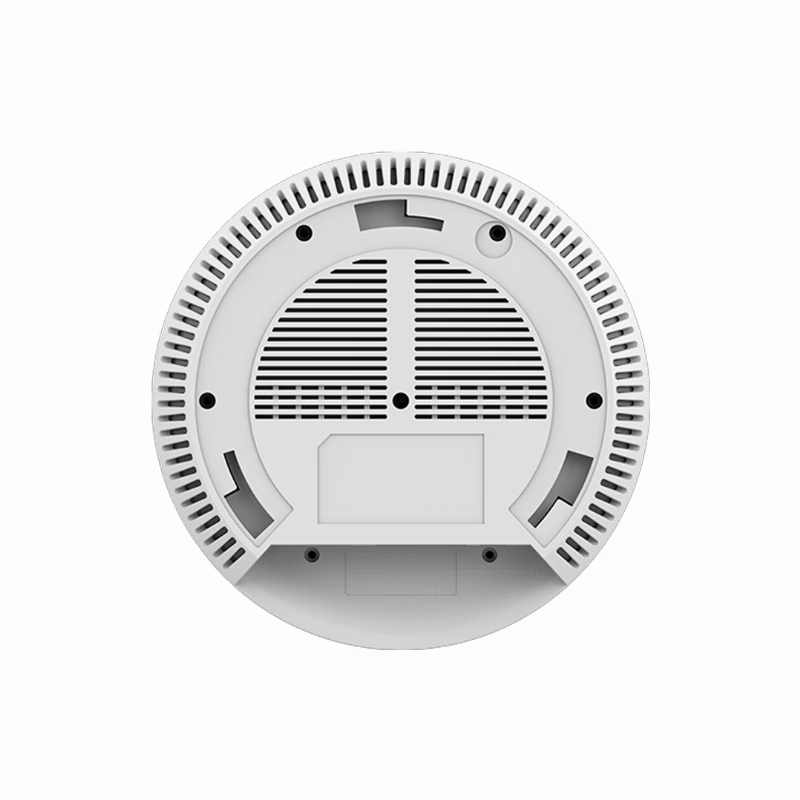

The GWN7660 is designed for indoor wall or ceiling mounting. It measures 180.4 x 180.4 x 40.8 mm and weighs 443 g, helping the facilities team check mounting space, surface suitability, and cable routing. The operating range is 0 to 45 °C with 10% to 90% non-condensing humidity, and the storage range is -10 to 60 °C. The selected indoor position should remain within these limits and avoid condensation or unsuitable heat. The reset pinhole and Kensington lock should remain accessible according to the site’s maintenance and physical-security procedures.

The box contains the GWN7660 802.11ax Wireless AP, Mounting Kits, and Quick Start Guide. Receiving staff can match these items before the unit is sent to its installation area, then use the supplied mounting hardware at the approved wall or ceiling position. Handover testing should record the unit location and supplying switch port, verify both bands, confirm that the correct SSIDs are visible, test authentication for each client group, and check coverage at the edges of the intended area. The model carries FCC, CE, RCM, and IC compliance, which can be recorded in the organization’s internal equipment documentation.

Package Contents

• GWN7660 802.11ax wireless access point
• Mounting kits
• Quick Start Guide
